» DVM Test Report: Steady-State|Generate Efficiency Curves
| Test Details | |
| Schematic | 8.1_SyncBuck Efficiency.sxsch |
| Test | Steady-State|Generate Efficiency Curves |
| Date / Time | 2/7/2015 10:34:12 AM |
| Report Directory | add_power_losses\Steady-State\GenerateEfficiency Curves |
| Log File | report.txt |

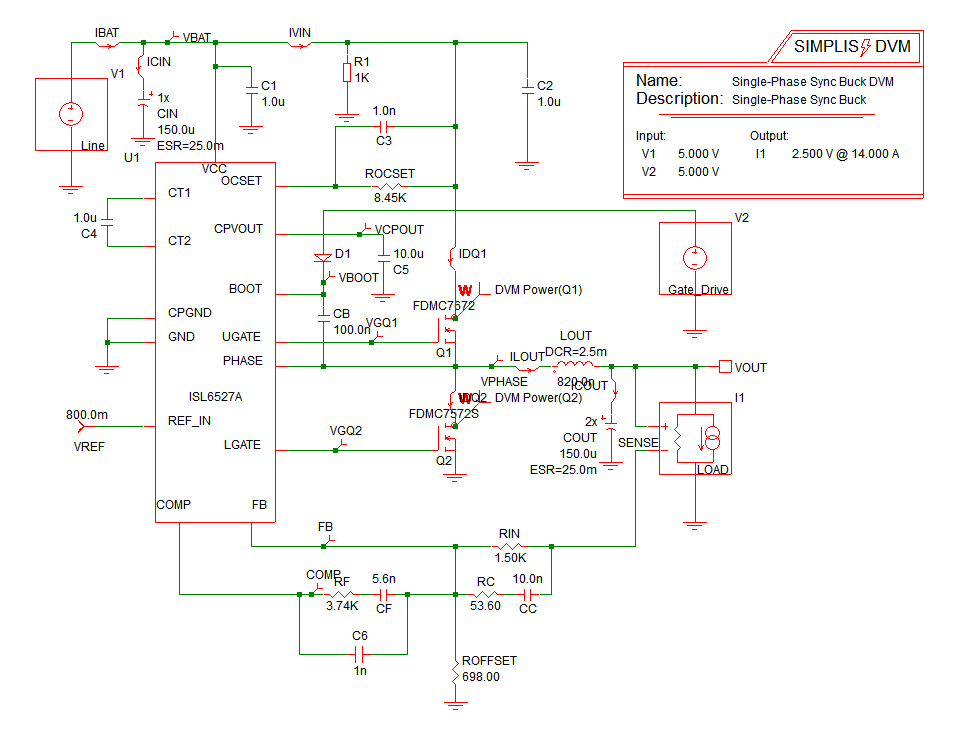

| Screenshot | schematic.png |
| Status | SKIP |
| Simulator | N/A |
| Measured Scalar Values | |
| Vin Max | MIN 88.5505 MAX 96.3777 |
| Vin Min | MIN 91.6191 MAX 96.8553 |
| Vin Nom | MIN 90.144 MAX 96.6182 |
 Efficiency
Vin Max
Vin Min
Vin Nom
|
|
| SXGPH File | simplis_pop42_2521.sxgph |
 Power High Side Q1
Vin Max
Vin Min
Vin Nom
|
|
| SXGPH File | simplis_pop42_2528.sxgph |
 Power Low Side Q2
Vin Max
Vin Min
Vin Nom
|
|
| SXGPH File | simplis_pop42_2535.sxgph |
 Gate Power
Vin Max
Vin Min
Vin Nom
|
|
| SXGPH File | simplis_pop42_2549.sxgph |
 Remaining Power Loss
Vin Max
Vin Min
Vin Nom
|
|
| SXGPH File | simplis_pop42_2542.sxgph |
