» DVM Test Report: Efficiency and Loop Characterization|Vin Maximum|80% Load
| Test Details | |
| Schematic | 8.2_LLCClosed Loop.sxsch |
| Test | Efficiency and Loop Characterization|Vin Maximum|80% Load |
| Date / Time | 2/7/2015 10:40:16 AM |
| Report Directory | measure_loop_param\Efficiencyand Loop Characterization\Vin Maximum\80% Load |
| Log File | report.txt |
| Screenshot | schematic.png |
| Status | PASS |
| Simulator | simplis |
| Deck | input.deck |
| Init | input.deck.init |
| Measured Scalar Values | |
| Efficiency | 95.4958% |
| Frequency(CLK) | 93.621368kHertz |
| Power(LOAD) | 96.7578 |
| Power(SRC) | 101.322 |
| eta_max | 95.4958% |
| gain_crossover_freq | 5.44648k |
| gain_margin | 21.1075 |
| gmargin_max | 21.1075 |
| gxover_max | 5.44648k |
| iload_max | 4.016 |
| min_phase | 57.2504 |
| phase_crossover_freq | 23.8124k |
| min_phase_freq | 5.44648k |
| phase_margin | 57.1885 |
| pmargin_max | 57.1885 |
| sw_freq_max | 93.621368kHertz |
| ICout | AVG 4.78842u MIN -4.00936 MAX 2.10366 RMS 1.8211 |
| IDQ1 | AVG 253.365m MIN -697.212m MAX 981.234m RMS 495.569m |
| IDQ2 | AVG 253.325m MIN -696.975m MAX 981.256m RMS 495.531m |
| ILOAD | AVG 4.016 MIN 4.00935 MAX 4.01953 RMS 4.01601 |
| ISRC | AVG 253.365m MIN -697.212m MAX 981.234m RMS 495.569m |
| Im | AVG -89.1178u MIN -500.665m MAX 500.486m RMS 289.439m |
| Ip | AVG 129.113u MIN -816.094m MAX 816.427m RMS 588.118m |
| Ir | AVG 39.9949u MIN -981.252m MAX 981.23m RMS 701.984m |
| Is1 | AVG 2.00849 MIN -5.08205u MAX 6.1232 RMS 3.11967 |
| Is2 | AVG 2.00752 MIN -5.08207u MAX 6.1207 RMS 3.11826 |
| VLOAD | AVG 24.093 MIN 24.0532 MAX 24.1141 RMS 24.0931 |
| VSRC | AVG 399.975 MIN 399.902 MAX 400.07 RMS 399.975 |
| VSW | AVG 199.975 MIN -731.989m MAX 400.8 RMS 282.239 |
| Vs | AVG -80.3202m MIN -25.1668 MAX 24.922 RMS 24.9448 |
| Measured Spec Values | |
| Max_VLOAD | PASS: Max. Output1 Voltage (24.1141) is less than or equal to Max. Output1 Voltage Spec (25.2) |
| Min_VLOAD | PASS: Min. Output1 Voltage (24.0532) is greater than or equal to Min. Output1 Voltage Spec (22.8) |
| min_gain_margin | PASS: Gain Margin (21.1075) is greater than Min. Gain Margin (12) |
| min_phase_margin | PASS: Phase Margin (57.1885) is greater than Min. Phase Margin (35) |

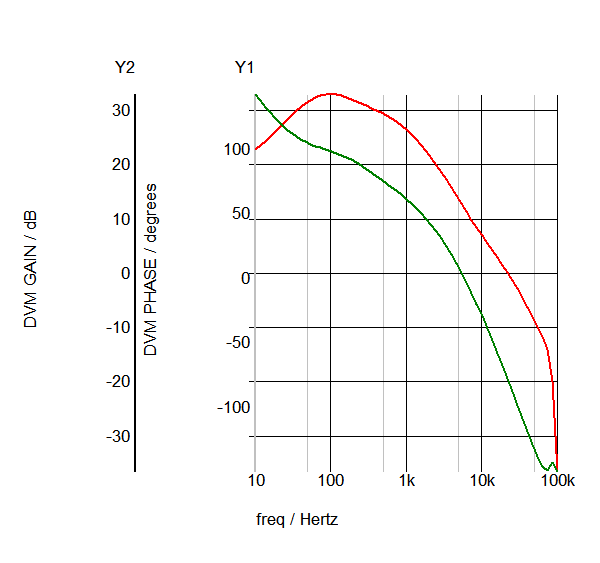

 Bode Plot
GAIN
PHASE
|
|
| SXGPH File | simplis_ac26_1679.sxgph |

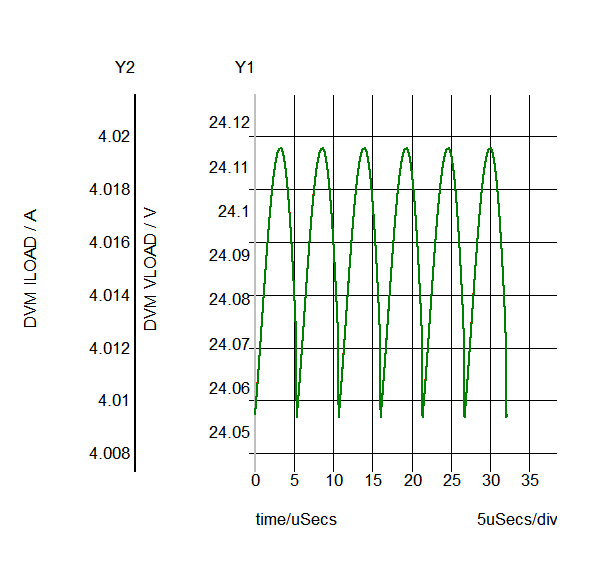

 LOAD
VLOAD
ILOAD
|
|
| SXGPH File | simplis_pop26_1645.sxgph |

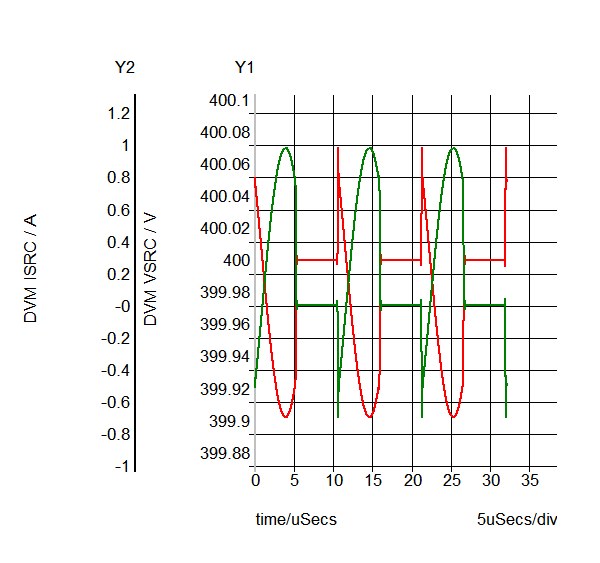

 SRC
VSRC
ISRC
|
|
| SXGPH File | simplis_pop26_1635.sxgph |

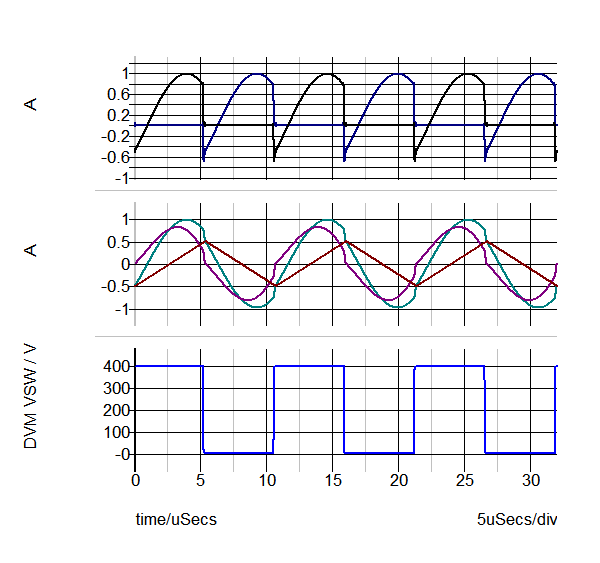

 Primary
IDQ1
IDQ2
Im
Ip
Ir
VSW
|
|
| SXGPH File | simplis_pop26_1626.sxgph |

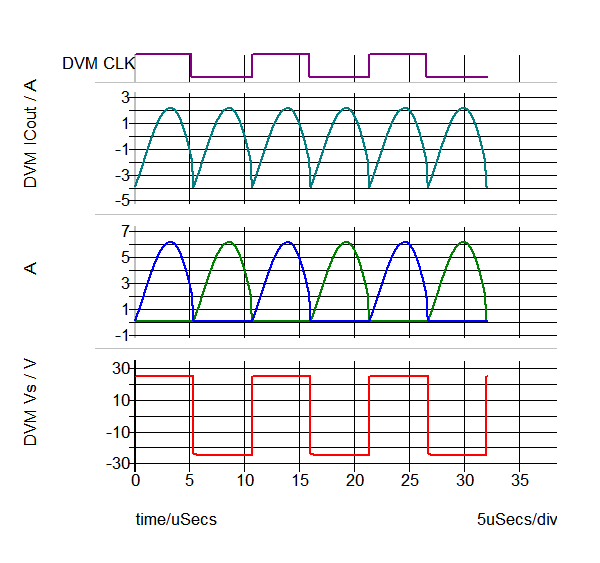

 Secondary
CLK
ICout
Is1
Is2
Vs
|
|
| SXGPH File | simplis_pop26_1640.sxgph |
| Other SXGPH Files | |
| default#1668#pop | simplis_pop26_1668.sxgph |
| Modulator#pop | simplis_pop26_1673.sxgph |
| DVM Bode Plot Input#log#ac | simplis_ac26_1686.sxgph |
