» DVM Test Report: Efficiency and Loop Characterization|Vin Nominal|15% Load
| Test Details | |
| Schematic | 8.2_LLCClosed Loop.sxsch |
| Test | Efficiency and Loop Characterization|Vin Nominal|15% Load |
| Date / Time | 2/7/2015 10:35:14 AM |
| Report Directory | measure_loop_param\Efficiencyand Loop Characterization\Vin Nominal\15% Load |
| Log File | report.txt |
| Screenshot | schematic.png |
| Status | PASS |
| Simulator | simplis |
| Deck | input.deck |
| Init | input.deck.init |
| Measured Scalar Values | |
| Efficiency | 95.6321% |
| Frequency(CLK) | 88.363904kHertz |
| Power(LOAD) | 18.1572 |
| Power(SRC) | 18.9865 |
| eta_nom | 95.6321% |
| gain_crossover_freq | 3.39574k |
| gain_margin | 28.0994 |
| gmargin_nom | 28.0994 |
| gxover_nom | 3.39574k |
| iload_nom | 753.507m |
| min_phase | 84.9521 |
| phase_crossover_freq | 35.2226k |
| min_phase_freq | 3.39574k |
| phase_margin | 84.9241 |
| pmargin_nom | 84.9241 |
| sw_freq_nom | 88.363904kHertz |
| ICout | AVG 4.81619u MIN -753.275m MAX 775.88m RMS 566.3m |
| IDQ1 | AVG 49.9822m MIN -522.863m MAX 552.502m RMS 259.16m |
| IDQ2 | AVG 49.9442m MIN -527.127m MAX 546.607m RMS 259.159m |
| ILOAD | AVG 753.507m MIN 753.266m MAX 753.756m RMS 753.507m |
| ISRC | AVG 49.9822m MIN -522.863m MAX 552.502m RMS 259.16m |
| Im | AVG -21.5526u MIN -521.495m MAX 521.421m RMS 304.241m |
| Ip | AVG 59.5516u MIN -203.781m MAX 203.953m RMS 125.694m |
| Ir | AVG 37.999u MIN -522.552m MAX 522.407m RMS 367.933m |
| Is1 | AVG 376.979m MIN -5.05129u MAX 1.52964 RMS 666.93m |
| Is2 | AVG 376.532m MIN -5.0513u MAX 1.52835 RMS 666.252m |
| VLOAD | AVG 24.0969 MIN 24.0894 MAX 24.1047 RMS 24.0969 |
| VSRC | AVG 379.995 MIN 379.945 MAX 380.052 RMS 379.995 |
| VSW | AVG 189.995 MIN -723.804m MAX 380.775 RMS 268.282 |
| Vs | AVG -15.0664m MIN -24.8778 MAX 24.8167 RMS 24.5717 |
| Measured Spec Values | |
| Max_VLOAD | PASS: Max. Output1 Voltage (24.1047) is less than or equal to Max. Output1 Voltage Spec (25.2) |
| Min_VLOAD | PASS: Min. Output1 Voltage (24.0894) is greater than or equal to Min. Output1 Voltage Spec (22.8) |
| min_gain_margin | PASS: Gain Margin (28.0994) is greater than Min. Gain Margin (12) |
| min_phase_margin | PASS: Phase Margin (84.9241) is greater than Min. Phase Margin (35) |

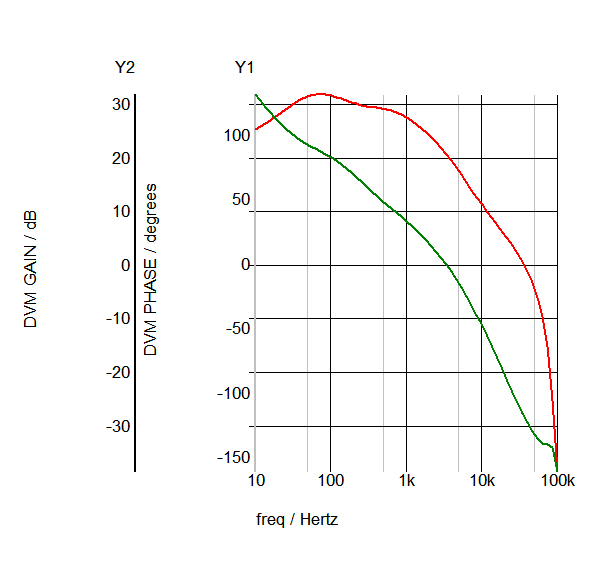

 Bode Plot
GAIN
PHASE
|
|
| SXGPH File | simplis_ac3_184.sxgph |

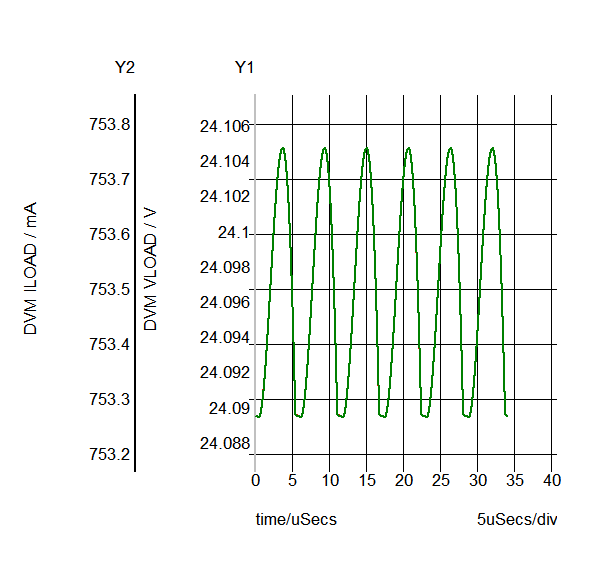

 LOAD
VLOAD
ILOAD
|
|
| SXGPH File | simplis_pop3_150.sxgph |

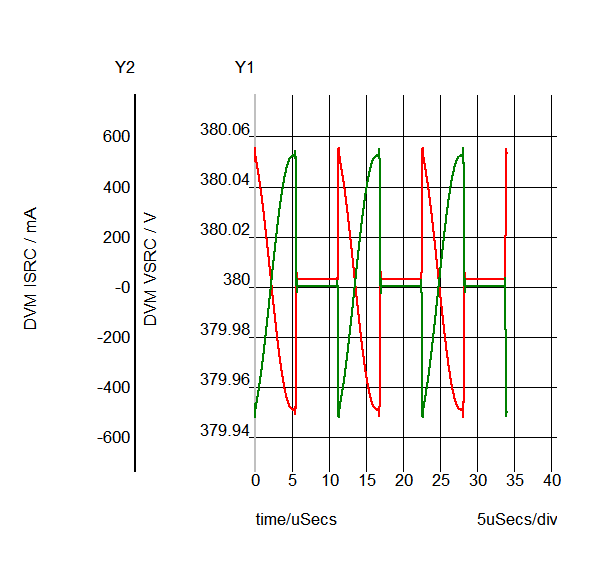

 SRC
VSRC
ISRC
|
|
| SXGPH File | simplis_pop3_140.sxgph |

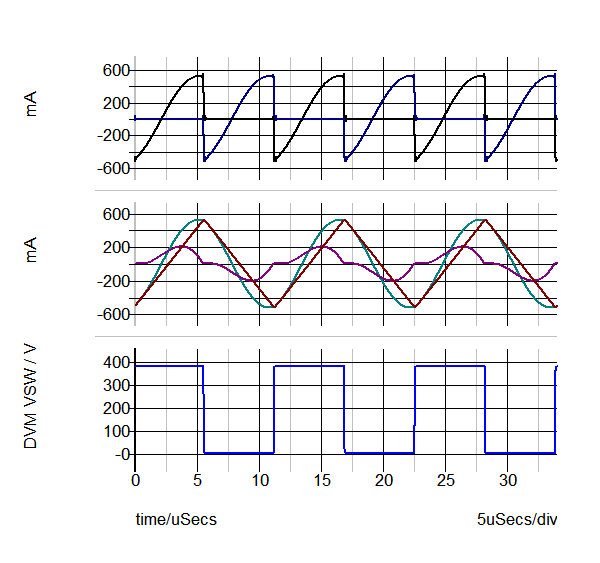

 Primary
IDQ1
IDQ2
Im
Ip
Ir
VSW
|
|
| SXGPH File | simplis_pop3_131.sxgph |

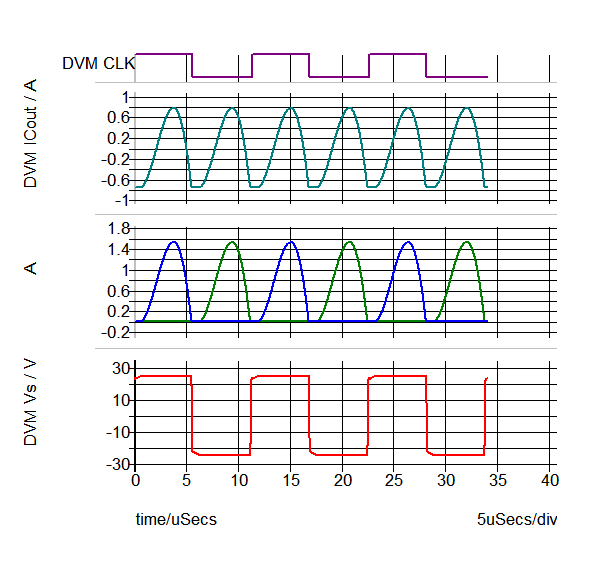

 Secondary
CLK
ICout
Is1
Is2
Vs
|
|
| SXGPH File | simplis_pop3_145.sxgph |
| Other SXGPH Files | |
| default#173#pop | simplis_pop3_173.sxgph |
| Modulator#pop | simplis_pop3_178.sxgph |
| DVM Bode Plot Input#log#ac | simplis_ac3_191.sxgph |
