» DVM Test Report: VOUT=1.505V|Bode Plot|Vin Nominal|100% Load

Test Details
Schematic 6.3_LTC3406B- DVM ADVANCED.sxsch
Test VOUT=1.505V|Bode Plot|Vin Nominal|100% Load
Date / Time 2/7/2015 10:26:37 AM
Report Directory promote_graphs\VOUT=1.505V\BodePlot\Vin Nominal\100% Load
Log File report.txt

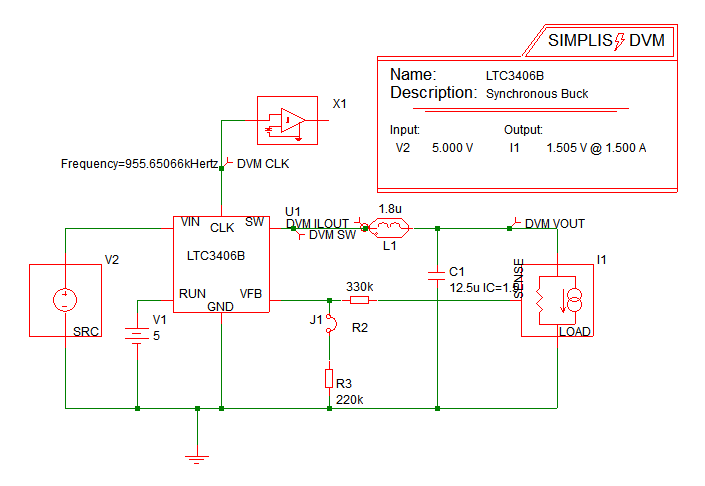

Screenshot schematic.png
Status PASS
Simulator simplis
Deck input.deck
Init input.deck.init
Measured Scalar Values
Efficiency 66.2768%
Frequency(CLK) 955.63357kHertz
Power(LOAD) 2.25923
Power(SRC) 3.40878
gain_crossover_freq 19.8447k
gain_crossover_freq_nom 19.8447k
gain_margin 26.7773
gain_margin_nom 26.7773
min_phase 50.9045
phase_crossover_freq 432.886k
min_phase_freq 19.8447k
phase_margin 50.8863
phase_margin_nom 50.8863
ILOAD
AVG
1.50058
MIN
1.4967
MAX
1.50421
RMS
1.50058
ILOUT
AVG
1.50058
MIN
1.14273
MAX
1.86156
RMS
1.51489
ISRC
AVG
681.965m
MIN
423.722u
MAX
1.86199
RMS
1.02424
SW
AVG
1.65563
MIN
-1.44462
MAX
4.54153
RMS
2.98569
VLOAD
AVG
1.50557
MIN
1.50168
MAX
1.50921
RMS
1.50557
VOUT
AVG
1.50557
MIN
1.50168
MAX
1.50921
RMS
1.50557
VSRC
AVG
4.99932
MIN
4.99814
MAX
5
RMS
4.99932
Measured Spec Values
Max_VLOAD PASS: Max. Output1 Voltage (1.50921) is less than or equal to Max. Output1 Voltage Spec (1.58025)
Min_VLOAD PASS: Min. Output1 Voltage (1.50168) is greater than or equal to Min. Output1 Voltage Spec (1.42975)
min_gain_margin PASS: Gain Margin (26.7773) is greater than Min. Gain Margin (12)
min_phase_margin PASS: Phase Margin (50.8863) is greater than Min. Phase Margin (35)

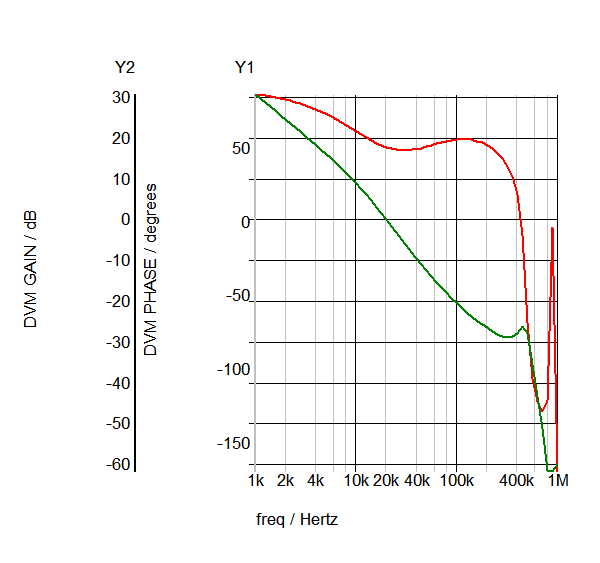

Bode Plot
GAIN
PHASE
SXGPH File simplis_ac3_130.sxgph

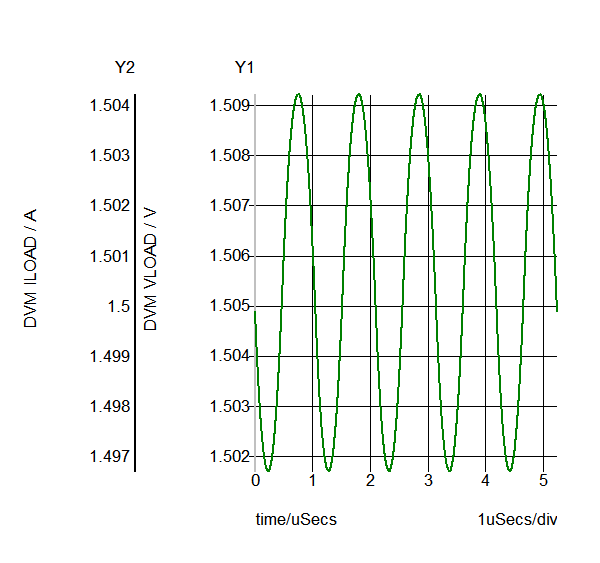

LOAD
VLOAD
ILOAD
SXGPH File simplis_pop3_113.sxgph

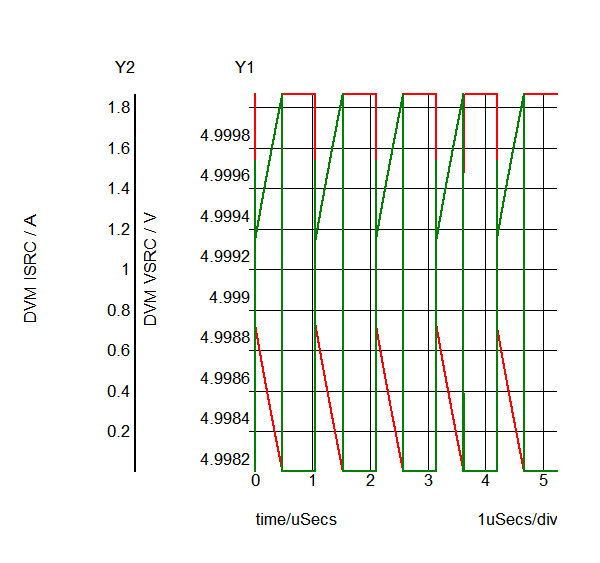

SRC
VSRC
ISRC
SXGPH File simplis_pop3_103.sxgph

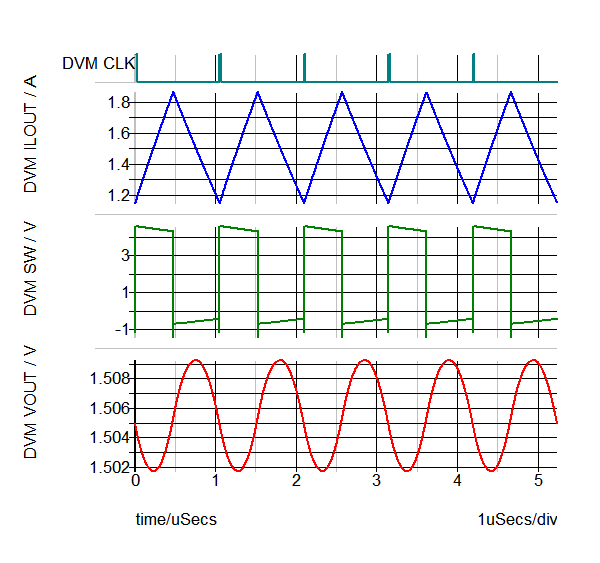

default
CLK
ILOUT
SW
VOUT
SXGPH File simplis_pop3_108.sxgph
Other SXGPH Files
DVM Bode Plot Input#log#ac simplis_ac3_137.sxgph
clock#pop simplis_pop3_95.sxgph
