» DVM Test Report: VOUT=1.505V|Bode Plot|Vin Nominal|50% Load

Test Details

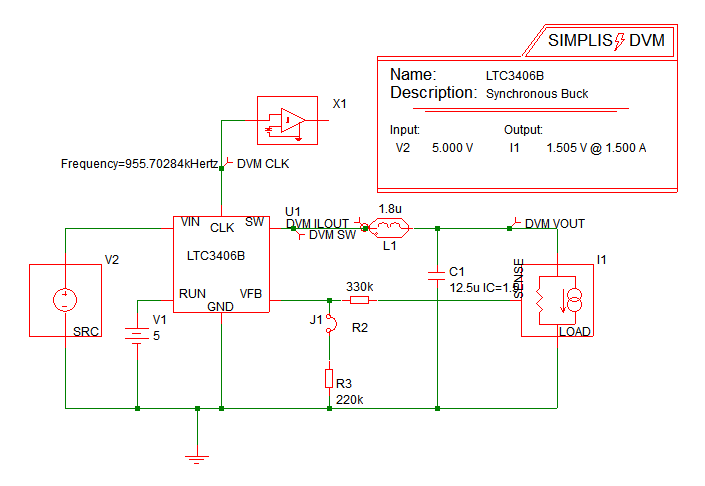

Schematic 6.3_LTC3406B- DVM ADVANCED.sxsch
Test VOUT=1.505V|Bode Plot|Vin Nominal|50% Load
Date / Time 2/7/2015 10:26:31 AM
Report Directory promote_graphs\VOUT=1.505V\BodePlot\Vin Nominal\50% Load
Log File report.txt
Screenshot schematic.png
Status PASS
Simulator simplis
Deck input.deck
Init input.deck.init
Measured Scalar Values
Efficiency 78.7659%
Frequency(CLK) 955.65066kHertz
Power(LOAD) 1.12969
Power(SRC) 1.43424
gain_crossover_freq 20.8851k
gain_crossover_freq_nom 20.8851k
gain_margin 30.3822
gain_margin_nom 30.3822
min_phase 37.0236
phase_crossover_freq 398.963k
min_phase_freq 20.8851k
phase_margin 36.9686
phase_margin_nom 36.9686
ILOAD
AVG
750.312m
MIN
748.387m
MAX
751.945m
RMS
750.313m
ILOUT
AVG
750.312m
MIN
413.589m
MAX
1.09521
RMS
775.722m
ISRC
AVG
286.895m
MIN
423.445u
MAX
1.09563
RMS
482.345m
SW
AVG
1.58066
MIN
-1.13808
MAX
4.83389
RMS
2.89056
VLOAD
AVG
1.50562
MIN
1.50176
MAX
1.5089
RMS
1.50563
VOUT
AVG
1.50562
MIN
1.50176
MAX
1.5089
RMS
1.50563
VSRC
AVG
4.99971
MIN
4.9989
MAX
5
RMS
4.99971
Measured Spec Values
Max_VLOAD PASS: Max. Output1 Voltage (1.5089) is less than or equal to Max. Output1 Voltage Spec (1.58025)
Min_VLOAD PASS: Min. Output1 Voltage (1.50176) is greater than or equal to Min. Output1 Voltage Spec (1.42975)
min_gain_margin PASS: Gain Margin (30.3822) is greater than Min. Gain Margin (12)
min_phase_margin PASS: Phase Margin (36.9686) is greater than Min. Phase Margin (35)
Bode Plot
GAIN
PHASE
SXGPH File simplis_ac2_83.sxgph
LOAD
VLOAD
ILOAD
SXGPH File simplis_pop2_66.sxgph

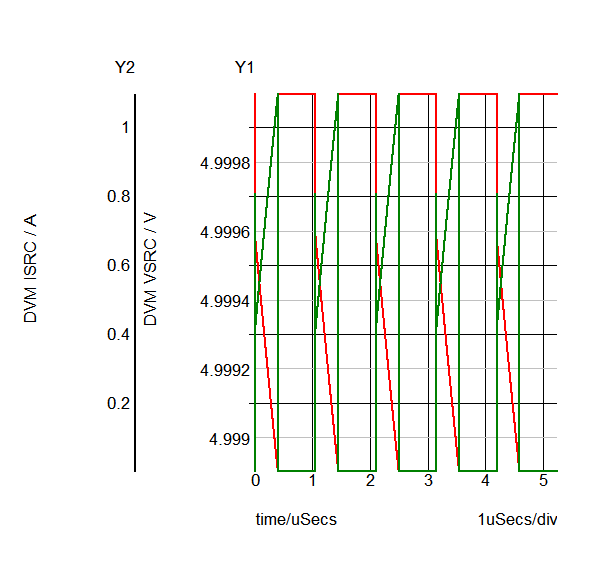

SRC
VSRC
ISRC
SXGPH File simplis_pop2_56.sxgph

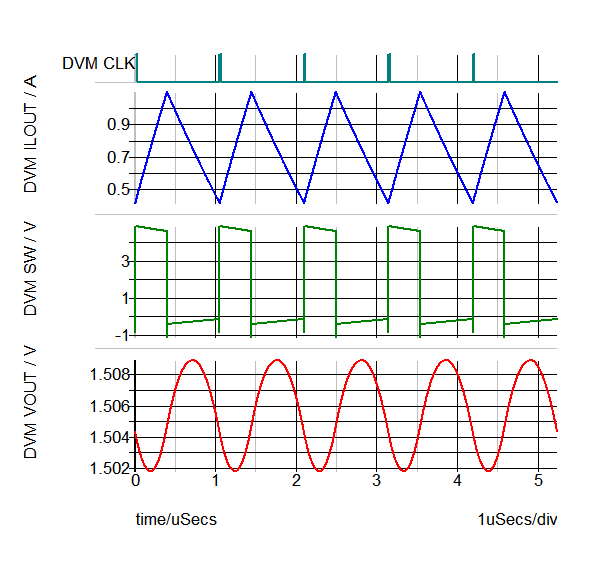

default
CLK
ILOUT
SW
VOUT
SXGPH File simplis_pop2_61.sxgph
Other SXGPH Files
clock#pop simplis_pop2_48.sxgph
DVM Bode Plot Input#log#ac simplis_ac2_90.sxgph
