» DVM Test Report: Steady-State|Steady-State|Vin Maximum|60%
| Test Details | |
| Schematic | 4.2_LTC3406B- DVM ADVANCED.sxsch |
| Test | Steady-State|Steady-State|Vin Maximum|60% |
| Date / Time | 2/7/2015 10:20:28 AM |
| Report Directory | run_blt_in_and_prmt_grphs\Steady-State\Steady-State\VinMaximum\60% |
| Log File | report.txt |
| Screenshot | schematic.png |
| Status | PASS |
| Simulator | simplis |
| Deck | input.deck |
| Init | input.deck.init |
| Measured Scalar Values | |
| Efficiency | 76.1588% |
| Efficiency_Max | 76.1588% |
| Frequency(CLK) | 955.64707kHertz |
| Power(LOAD) | 1.35571 |
| Power(SRC) | 1.7801 |
| ILOAD | AVG 900.401m MIN 897.83m MAX 902.521m RMS 900.402m |
| ILOUT | AVG 900.401m MIN 604.135m MAX 1.20353 RMS 916.894m |
| ISRC | AVG 323.711m MIN 465.803u MAX 1.20399 RMS 551.769m |
| SW | AVG 1.5957 MIN -1.18141 MAX 5.2575 RMS 3.07737 |
| VLOAD | AVG 1.50566 MIN 1.50136 MAX 1.50921 RMS 1.50567 PK2PK 7.84581m |
| VOUT | AVG 1.50566 MIN 1.50136 MAX 1.50921 RMS 1.50567 |
| VSRC | AVG 5.49968 MIN 5.4988 MAX 5.5 RMS 5.49968 |
| Measured Spec Values | |
| Max_VLOAD | PASS: Max. Output1 Voltage (1.50921) is less than or equal to Max. Output1 Voltage Spec (1.58025) |
| Min_VLOAD | PASS: Min. Output1 Voltage (1.50136) is greater than or equal to Min. Output1 Voltage Spec (1.42975) |

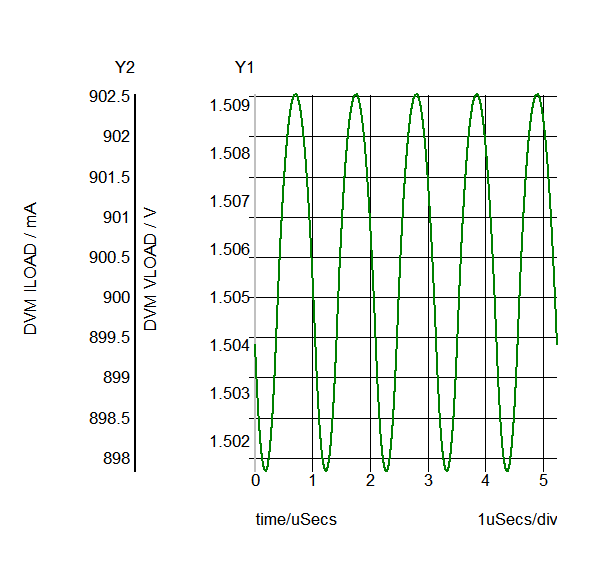

 LOAD
VLOAD
ILOAD
|
|
| SXGPH File | simplis_pop18_614.sxgph |

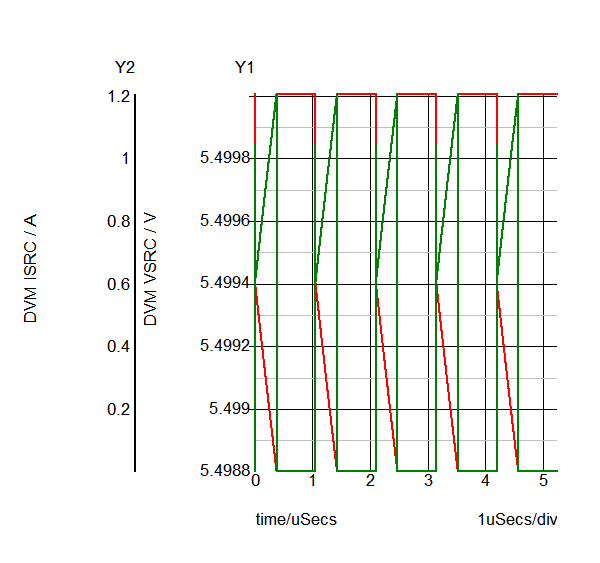

 SRC
VSRC
ISRC
|
|
| SXGPH File | simplis_pop18_604.sxgph |
 default
CLK
ILOUT
SW
VOUT
|
|
| SXGPH File | simplis_pop18_609.sxgph |
| Other SXGPH Files | |
| clock#pop | simplis_pop18_596.sxgph |
