» DVM Test Report: Steady-State|Input 1 Maximum Voltage, Output 1 50% Load
| Test Details | |
| Schematic | 4.2_LTC3406B- DVM ADVANCED.sxsch |
| Test | Steady-State|Input 1 Maximum Voltage, Output 1 50% Load |
| Date / Time | 2/7/2015 10:22:11 AM |
| Report Directory | run_line_load_testplan\Steady-State\Input1 Maximum Voltage, Output 1 50% Load |
| Log File | report.txt |
| Screenshot | schematic.png |
| Status | PASS |
| Simulator | simplis |
| Deck | input.deck |
| Init | input.deck.init |
| Measured Scalar Values | |
| Efficiency | 79.0058% |
| Frequency(CLK) | 955.65124kHertz |
| Power(LOAD) | 1.12977 |
| Power(SRC) | 1.42998 |
| ILOAD | AVG 750.338m MIN 748.216m MAX 752.056m RMS 750.339m |
| ILOUT | AVG 750.338m MIN 459.717m MAX 1.04833 RMS 769.357m |
| ISRC | AVG 260.034m MIN 465.747u MAX 1.0488 RMS 454.793m |
| SW | AVG 1.58071 MIN -1.11933 MAX 5.31541 RMS 3.04933 |
| VLOAD | AVG 1.50567 MIN 1.50142 MAX 1.50912 RMS 1.50568 PK2PK 7.7046m |
| VOUT | AVG 1.50567 MIN 1.50142 MAX 1.50912 RMS 1.50568 |
| VSRC | AVG 5.49974 MIN 5.49895 MAX 5.5 RMS 5.49974 |
| Measured Spec Values | |
| Max_VLOAD | PASS: Max. Output1 Voltage (1.50912) is less than or equal to Max. Output1 Voltage Spec (1.58025) |
| Min_VLOAD | PASS: Min. Output1 Voltage (1.50142) is greater than or equal to Min. Output1 Voltage Spec (1.42975) |

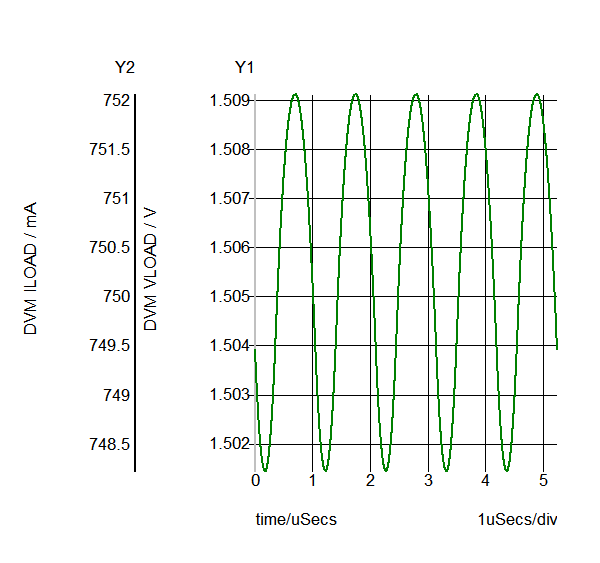

 LOAD
ILOAD
VLOAD
|
|
| SXGPH File | simplis_pop6_194.sxgph |
 SRC
VSRC
ISRC
|
|
| SXGPH File | simplis_pop6_184.sxgph |

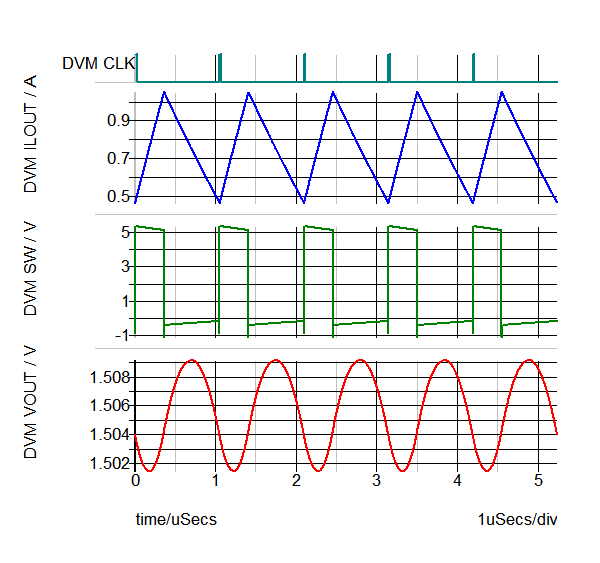

 default
CLK
ILOUT
SW
VOUT
|
|
| SXGPH File | simplis_pop6_189.sxgph |
| Other SXGPH Files | |
| clock#pop | simplis_pop6_176.sxgph |
