SIMPLIS DVM Test Report

Test Details

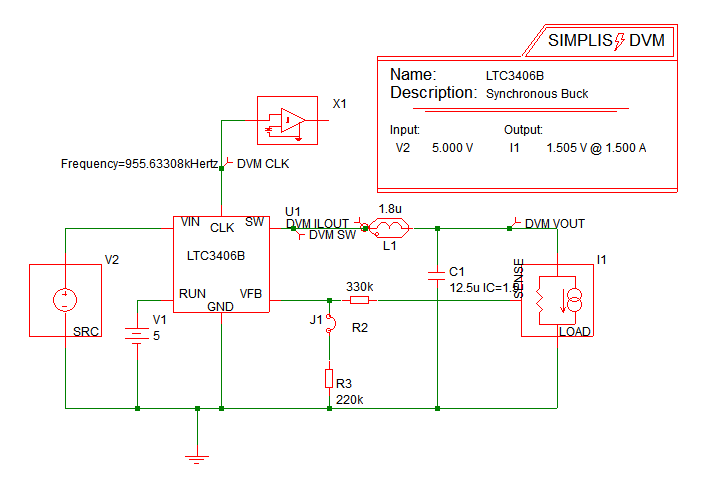

Schematic	6.3_LTC3406B- DVM ADVANCED.sxsch
Test	Pre-Process
Date / Time	2/9/2015 5:36:53 PM
Report Directory	scripting\Pre-Process
Log File	report.txt
Screenshot	schematic.png
Status	PASS
Simulator	simplis
Deck	input.deck
Init	input.deck.init

Measured Scalar Values
Frequency(CLK)	955.63308kHertz
GAIN	MIN -61.6648 MAX 30.3333
ILOAD	MIN 1.49635 MAX 1.50441
ILOUT	MIN 1.11755 MAX 1.89
ISRC	MIN 466.041u MAX 1.89047
PHASE	MIN -168.703 MAX 86.7445
SW	MIN -1.456 MAX 5.05159
VLOAD	MIN 1.50133 MAX 1.50942
VOUT	MIN 1.50133 MAX 1.50942
VSRC	MIN 5.49811 MAX 5.5

Measured Spec Values
Max_VLOAD	PASS: Max. Output1 Voltage (1.50942) is less than or equal to Max. Output1 Voltage Spec (1.58025)
Min_VLOAD	PASS: Min. Output1 Voltage (1.50133) is greater than or equal to Min. Output1 Voltage Spec (1.42975)

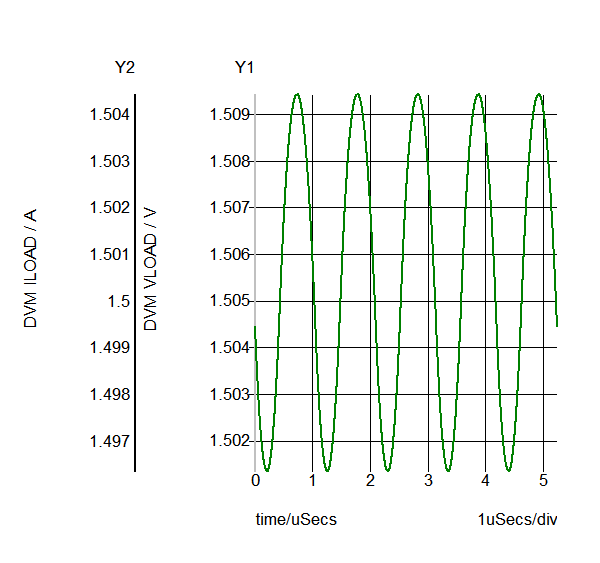

LOAD VLOAD ILOAD
SXGPH File	simplis_pop1_19.sxgph

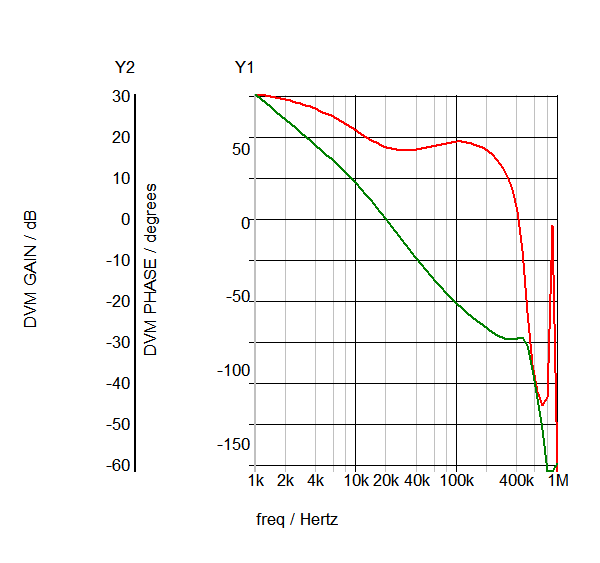

Bode Plot GAIN PHASE
SXGPH File	simplis_ac1_36.sxgph

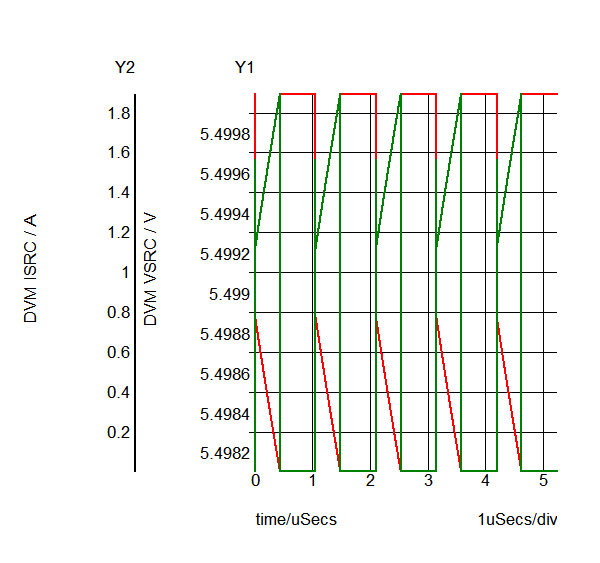

SRC VSRC ISRC
SXGPH File	simplis_pop1_9.sxgph

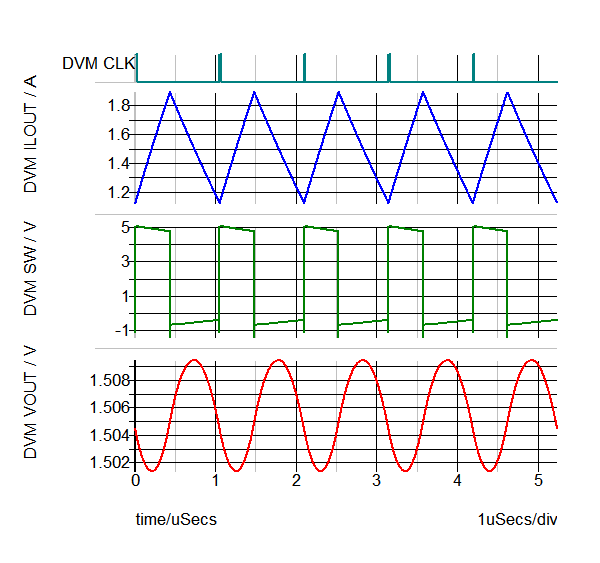

default CLK ILOUT SW VOUT
SXGPH File	simplis_pop1_14.sxgph


Other SXGPH Files
clock#pop	simplis_pop1_1.sxgph
DVM Bode Plot Input#log#ac	simplis_ac1_43.sxgph
