SystemDesigner Unit Delay

The SystemDesigner Unit Delay models a unit delay in the z-domain. The model used by the Unit Delay is identical to the Data Register; only the symbol is different. The Unit Delay can be clocked with any SystemDesigner clock. From the Output parameter box, you can limit the resulting output to either signed or unsigned numbers with fewer than 32 bits.

The propagation delay can be defined as a fixed time, as asynchronous to any clock, or as a synchronous delay where the delay is a number of SystemDesigner-clocks cycles. In this release of SystemDesigner, the synchronous delay is supported only for integer-sampled data simulations.

In this Topic ShowHide

Editing the Unit Delay
Examples
Waveforms

Model Name:	*SystemDesigner* Unit Delay
Simulator:		This device is compatible with the SIMPLIS simulator.
Parts Selector Menu Location:	SystemDesigner Functions (max. 32 bit)
Symbol Library:	SIMPLIS_SystemDesigner.sxslb
Model File:	SIMPLIS_SystemDesigner.lb
Subcircuit Name:	SIMPLIS_SD_UNIT_DELAY_32
Symbols:
Multiple Selections:	Only one device at a time can be edited.

Editing the Unit Delay

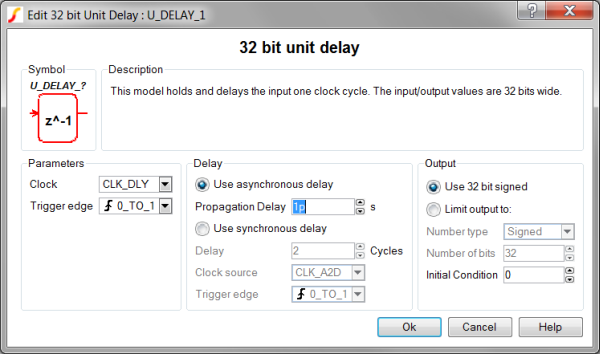

To configure the Unit Delay, double click the symbol to open the parameter editing dialog.

Label	Parameter Description
Clock	Specifies the global clock used for the register. The Clock can be set up using the SystemDesigner->Edit SystemDesigner Clocks... menu item.
Trigger edge	Sets the actual register to change on specific edges of the Clock : 0_TO_1 The output changes only on rising edges of the Clock 1_TO_0 The output changes only on falling edges of the Clock
Use asynchronous delay	Implements a combinatorial model where the output voltage changes in response to the input voltage(s) change after a propagation delay.
Propagation Delay	The propagation delay from an input change to an output change in seconds. This parameter is used only in models with Asynchronous delay.
Use synchronous delay	In response to an input voltage change, the output voltage changes after a designated number of clock cycles.
Delay	The propagation delay from an input change to an output change in number of clock cycles. The output will not change until the number of clock cycles has been reached. The output will then change state only on the selected Clock source edges specified by Trigger edge. The Clock source can be set using the SystemDesigner->Edit SystemDesigner Clocks... menu item. This parameter is used only in models with Synchronous delay.
Clock source	Specifies the global clock used for the Synchronous delay block. The Clock source can be set using the SystemDesigner->Edit SystemDesigner Clocks... menu item. This parameter is used only in models with Synchronous delay.
Trigger edge	Sets the output to change on specific edges of the Clock source : 0_TO_1 The output changes only on rising edges of the Clock source 1_TO_0 The output changes only on falling edges of the Clock source This parameter is used only in models with Synchronous delay.
Use 32 bit signed	The full 32-bit signed data is output.
Limit output to:	The output is limited to a Signed or Unsigned number with a designated number of bits.
Number type	The output will be limited to either a Signed or Unsigned number if Limit output to is selected. Signed numbers include integers from -2^{Number of bits-1} to 2^{Number of bits-1}-1 Unsigned numbers include integers from 0 to 2^{Number of bits} This parameter is used only in models with Limit output to selected.
Number of bits	The limit on the output depends on the Number type parameter : Signed numbers include integers from -2^{Number of bits-1} to 2^{Number of bits-1}-1 Unsigned numbers include integers from 0 to 2^{Number of bits} This parameter is used only in models with Limit output to selected.
Initial Condition	Initial condition of the output at time=0. Value is the output bus represented in decimal format.

Examples

A circuit example using the SystemDesigner unit delay can be downloaded here : simplis_125_systemdesigner_unit_delay_example.zip. In order to simulate this design, follow these steps:

If you currently have a dialog box open in SIMetrix/SIMPLIS, cancel that dialog box so that the example can open in SIMetrix/SIMPLIS.
Unzip the archive to a location on your computer.
To open the schematic, double click the .sxsch file or drag that file into the SIMetrix/SIMPLIS Command Shell.

Waveforms

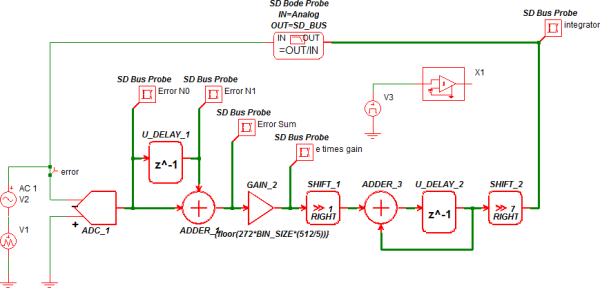

In this example, a complete integrator is implemented using the Unit Delay, U_DELAY_1, to store the previous error sample. The function then does the following in this order:

The integrator uses the trapezoidal rule integration method to integrate the incoming error signal.
Another unit dela,y U_DELAY_2, accumulates the result of previous samples.
The adder then adds the two analog signals and produces the output: Sum = Error N0 + Error N1.
The Sum is then gained by the GAIN_1 block and divided by 2 using the shift right operation SHIFT_1.
Finally, the accumulator implemented with U_DELAY_2 and ADDER_3 stores the accumulated results.

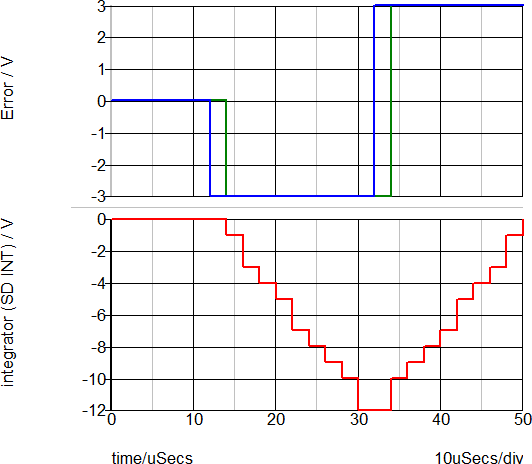

Note the quantization of the integrator output in the integer-type simulations:

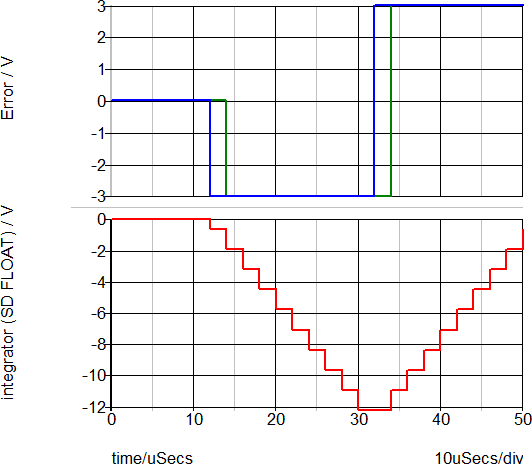

In the floating-point simulation, there is no quantization of the integrated signal.

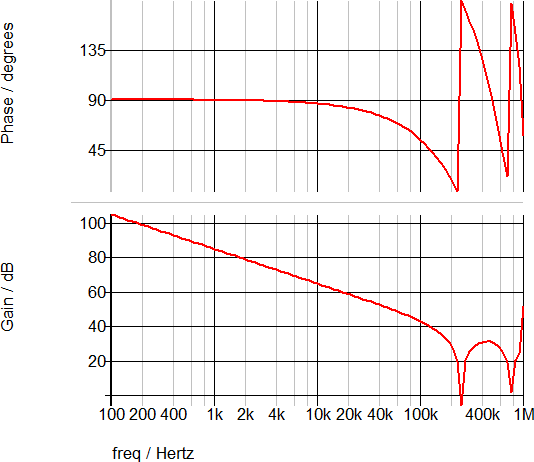

The AC transfer function for the integrator is shown below.
