Sampling Clock Generator for Discrete Filters

The Sampling Clock Generator for Discrete Filters generates the narrow pulse width TRIG signals for use with the discrete time filters. You can think of this device as a one-shot which triggers on every rising edge of the input clock. The output pulse is set by the Acquisition Time parameter.

Related topics:

In this Topic Hide

Model Name:

Sampling Clock Generator for Discrete Filters

Simulator:

This device is compatible with the SIMPLIS simulator.

Parts Selector
Menu Location:

Digital Functions | Discrete Time Filters

Symbol Library:

None - the symbol is automatically generated when placed or edited.

Model File:

None - the device model is generated before simulation.

Subcircuit Name:

SIMPLIS_DIGI1_D_DF_SCG_Y

Symbols:

Multiple Selections:

Only one device at a time can be edited.

Editing the Sampling Clock Generator for Discrete Filters

To configure the sampling clock generator for discrete filters, follow these steps:

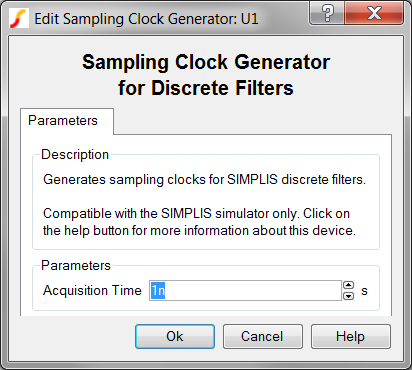

  1. Double click the symbol on the schematic to open the editing dialog to the Parameters tab.
  2. Make the appropriate changes to the fields described in the table below the image.

Label Parameter Description

Acquisition Time

Filter acquisition time in seconds

Examples

The test circuit used to generate the waveform examples in the next section can be downloaded here: simplis_039_sclockgenerator_example.sxsch.

Waveforms

In the circuit example, the Acquisition Time for each sampling clock generator is set to 1ns.

Subcircuit Parameters

Because this sampling clock generator for discrete filters model is generated by a template script when the simulation is executed, a fixed model cannot be inserted into a netlist. The template script for this device is simplis_make_digital_filter_model.sxscr, which you, as a licensed user, can download in a zip archive of all built-in scripts.

To download this zip file, follow these steps:

Note: You will be prompted to log in with the user name and password given to you when you registered.

  1. Click here to go to the product-installation page on the SIMetrix website.
  2. Click Download Links in the first paragraph of the product-installation web page.
  3. Scroll down to the Built-in Scripts section.
  4. Right click on Download and select Save target as..., and then navigate to a location on your computer to save the zip file.
