SIMPLIS One Shot

The SIMPLIS One Shot models a monostable multivibrator with an edge triggered input. On every rising edge the one shot starts a timer and sets the output pin high. After the parameterized time interval expires, the output pin returns to zero. Three outputs are provided:

In this Topic Hide

Model Name:

SIMPLIS One Shot

Simulator:

This device is compatible with the SIMPLIS simulator

Parts Selector Menu Location:

Analog Functions | SIMPLIS One Shot

Symbol Library:

simplis_analog_functions.sxslb

Model File:

simplis_analog_functions.lb

Symbol Name:

SIMPLIS_1SHOT

Subcircuit Name:

SIMPLIS_1SHOT

Symbol:

Multiple Selections:

Multiple devices can be selected and edited simultaneously.

Previous Version Compatibility

This symbol was introduced with version 8.0; however, the model and supporting files are available in version 7.20 as well. In versions prior to 7.20, the schematic will simulate, but you will not be able to edit the parameters with the dialog pictured in this topic.

For a version of the SIMPLIS One Shot editable with versions prior to version 7.20, see the parts selector entry:

Obsolete | Analog Functions | SIMPLIS One Shot (Obsolete)

Symbol Migration

Symbols placed on schematics in previous versions of SIMetrix/SIMPLIS can be automatically migrated to use the new symbols. The schematic tools menu Tools ▶ Migrate Schematic Symbols to Version 8.00 will invoke a routine which migrates the existing symbols to the new symbols. As this action makes substantial changes to the schematic, it is recommended that you save a backup copy of the schematic first.

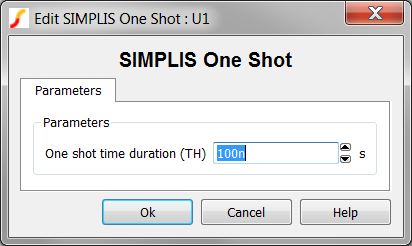

Editing the SIMPLIS One Shot

To configure the SIMPLIS One Shot, follow these steps:

  1. Double click the symbol on the schematic to open the editing dialog.
  2. Change the One shot time duration..

Parameter Label

Units

Description

One shot time duration (TH)

s

The high time duration for the one shot.

Examples

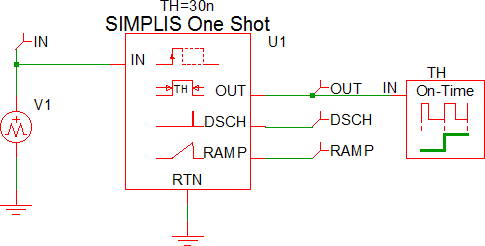

The test circuit used to generate the waveform examples in the next section can be downloaded here: simplis_069_simplis_one_shot.sxsch.

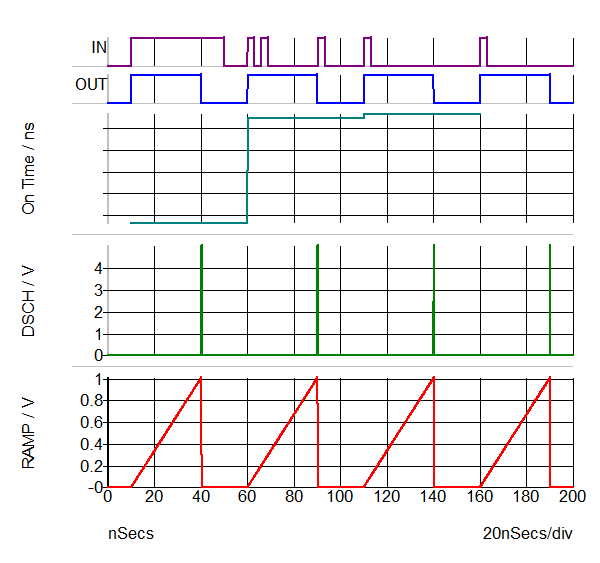

Waveforms


The waveforms shown below are for a test circuit with the one shot time duration set to 30ns. A brief description of the behavior is as follows:
  1. The first input pulse at t=10ns sets the one shot output high.
  2. At t=40ns, the one shot time interval expires and the DISC pin is high. Although the input pin is still high, the input is ignored because the one shot is edge driven.
  3. At a time of 60ns, another input pulse sets the one shot. An additional pulse at t=66ns is ignored.
  4. During the discharge portion, a pulse is input to the one shot to show that the one shot ignores this pulse.
  5. Two more normal pulses are input, one at t=110ns and a second at t=160ns.

Note: the On Time of the one shot is plotted with a Per-Cycle Probe. The changing pulse width shown on the graph is due to numerical noise. The actual difference in on times is on the order of 1E-24 seconds.
