» DVM Test Report: Steady-State|Steady-State|Vin Nominal|35%

Test Details
Schematic 8.1_Sync Buck Efficiency.sxsch
Test Steady-State|Steady-State|Vin Nominal|35%
Date / Time 12/10/2015 5:59 PM
Report Directory add_power_losses\Steady-State\Steady-State\VinNominal\35%
Log File report.txt
Screenshot schematic.png
Status PASS
Simulator simplis
Deck input.deck
Init input.deck.init
Measured Scalar Values
Efficiency 96.6210%
Efficiency_nom 96.6210%
IGate_Drive
AVG
11.8369m
MIN
-537.575p
MAX
4.71461
RMS
182.317m
PK2PK
4.71461
ILine
AVG
2.56634
MIN
75.1875m
MAX
6.0798
RMS
3.52477
PK2PK
6.00462
ILOAD
AVG
4.93847
MIN
4.90821
MAX
4.96878
RMS
4.9385
PK2PK
60.5745m
ILOAD_Nom 4.93847
Power(Gate_Drive) 59.1509m
Power(Line) 12.8193
Power(LOAD) 12.4433
Power(Q1)
AVG
130.231m
Power(Q2)
AVG
56.3274m
Power_Gate_Drive_Nom 59.1509m
Power_Line_Nom 12.8193
Power_Load_Nom 12.4433
Power_Q1_Nom 130.231m
Power_Q2_Nom 56.3274m
Power_Sum_Of_All_Sources 12.8784
VGate_Drive
AVG
4.99999
MIN
4.99529
MAX
5
RMS
4.99999
PK2PK
4.71461m
VLine
AVG
4.99743
MIN
4.99392
MAX
4.99992
RMS
4.99743
PK2PK
6.00462m
VLOAD
AVG
2.51963
MIN
2.50419
MAX
2.53509
RMS
2.51964
PK2PK
30.9053m
Measured Spec Values
Max_VLOAD PASS: Max. Output1 Voltage (2.53509) is less than or equal to Max. Output1 Voltage Spec (2.625)
Min_VLOAD PASS: Min. Output1 Voltage (2.50419) is greater than or equal to Min. Output1 Voltage Spec (2.375)

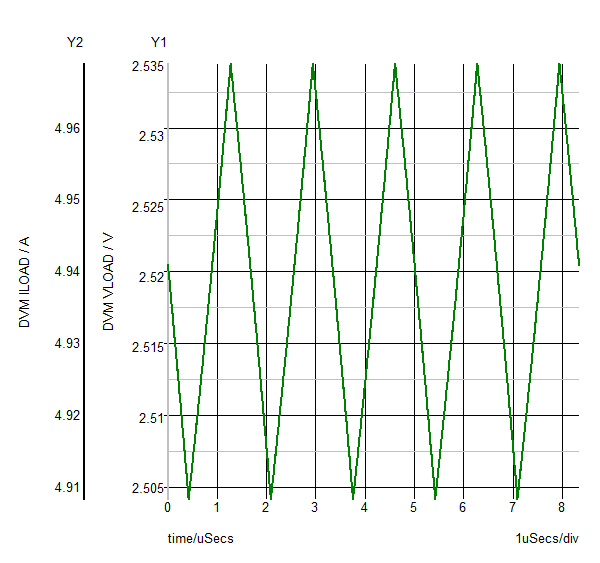

LOAD
ILOAD
VLOAD
SXGPH File simplis_pop7_393.sxgph

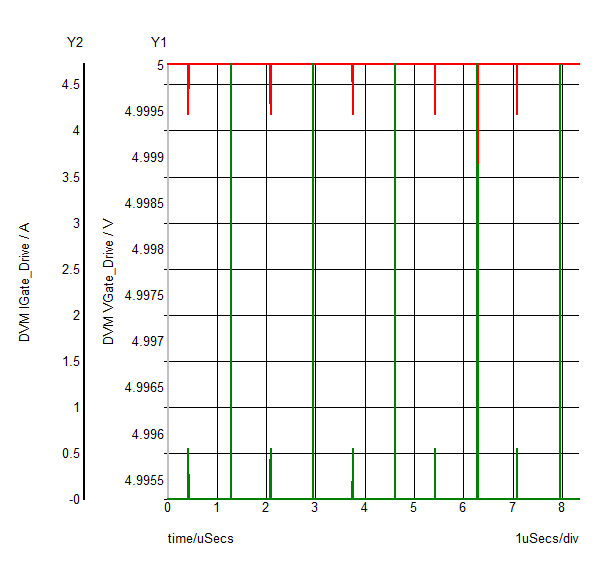

Gate_Drive
VGate_Drive
IGate_Drive
SXGPH File simplis_pop7_403.sxgph

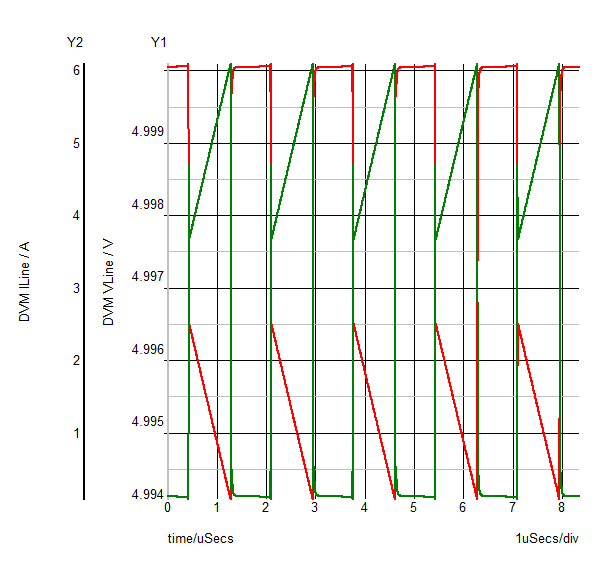

Line
ILine
VLine
SXGPH File simplis_pop7_398.sxgph

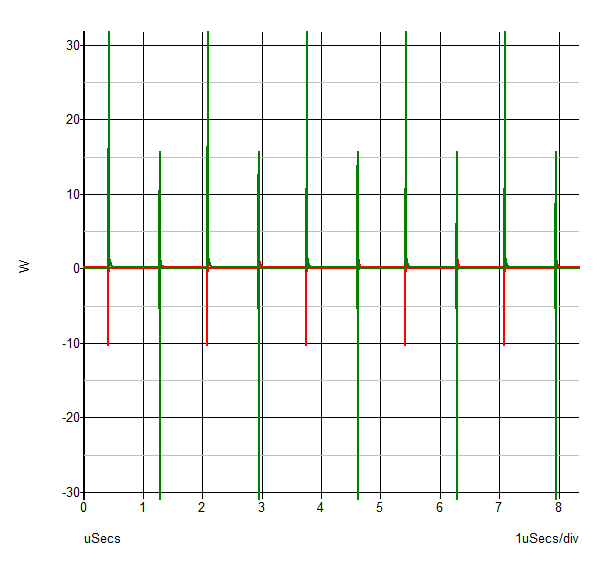

power
Power(Q1)
Power(Q2)
SXGPH File simplis_pop7_408.sxgph
Other SXGPH Files
SWITCHING#pop simplis_pop7_361.sxgph
DRIVE#pop simplis_pop7_366.sxgph
INPUT#pop simplis_pop7_372.sxgph
IC#pop simplis_pop7_388.sxgph
