» DVM Test Report: Transient|LineSag|LL_Nominal_to_LL_Sag|F_High|100% Load
| Test Details | |
| Schematic | DVM_PFC_Continuous_Conduction_Mode.sxsch |
| Test | Transient|LineSag|LL_Nominal_to_LL_Sag|F_High|100% Load |
| Date / Time | 12/10/2015 6:32 PM |
| Report Directory | ac_dc_built_in\Transient\LineSag\LL_Nominal_to_LL_Sag\F_High\100%Load |
| Log File | report.txt |
| Screenshot | schematic.png |
| Status | FAIL |
| Simulator | simplis |
| Deck | input.deck |
| Init | input.deck.init |
| Measured Scalar Values | |
| Frequency(Line) | 60 |
| ILine | MIN -4.1693 MAX 5.02082 RMS 1.82367 |
| ILine During Sag | MAX 3.93964 RMS 2.53544 |
| ILine Inrush Current | MAX 5.02082 |
| IPFCOutput | MIN 469.464m MAX 540.345m |
| Overshoot_VPFCOutput | 432.276 |
| VLine | MIN -161.782 MAX 161.801 |
| VLine After Sag | RMS 115 |
| VLine During Sag | RMS 85 |
| vout1_recovery_time_2 | 40.8554m |
| VPFCOutput | MIN 375.571 MAX 432.276 |
| VPFCOutput %_diff_last_2_linecycles | 0.109109% |
| VPFCOutput At Simulation Start Time | AVG 400.058 |
| VPFCOutput During Sag | MIN 375.571 |
| VPFCOutput Last LineCycle | AVG 401.038 |
| VPFCOutput overshoot | MAX 432.276 |
| VPFCOutput Previous LineCycle | AVG 401.475 |
| VPFCOutput_in_reg | AVG 403.195 MIN 397.629 MAX 408.765 RMS 403.205 PK2PK 11.1357 |
| Measured Spec Values | |
| AC_Settling(PFCOutput) | PASS: Voltage across PFCOutput has settled to (1.09109m) % and is less than or equal to Max Settling Spec of (10m) % |
| Max_ILine_Inrush | PASS: Max. Inrush Current after Line Sag for Line (5.02082) is less than or equal to Max. Inrush Spec of (15) |
| Max_VPFCOutput_in_reg | PASS: Max. Output1 Voltage in Reg. (408.765) is less than or equal to Max. Output1 Voltage Spec (420) |
| Min_VPFCOutput_in_reg | PASS: Min. Output1 Voltage in Reg. (397.629) is greater than or equal to Min. Output1 Voltage Spec (380) |
| Overshoot_VPFCOutput | FAIL: Max. Output1 Voltage (432.276) is not less than or equal to Max. Output1 Voltage Spec (420) |
| Pk2Pk_VPFCOutput_in_reg | FAIL: Pk-to-Pk Output1 Voltage in Reg. (11.1357) is not less than or equal to Max. Output1 Voltage Spec (10) |

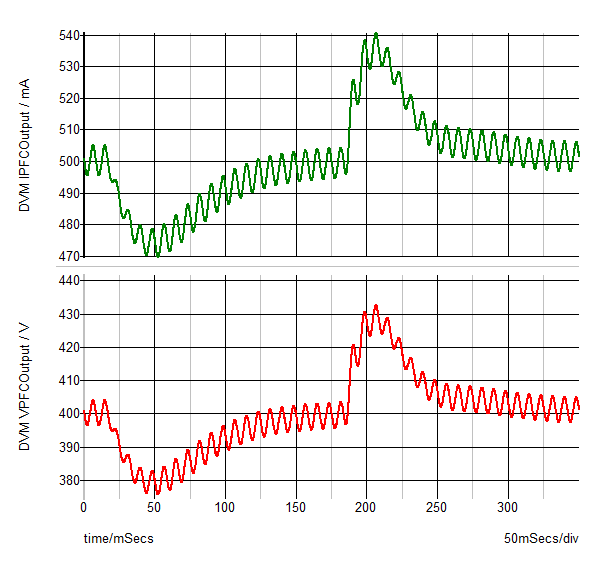

 PFCOutput
IPFCOutput
VPFCOutput
|
|
| SXGPH File | simplis_tran13_298.sxgph |

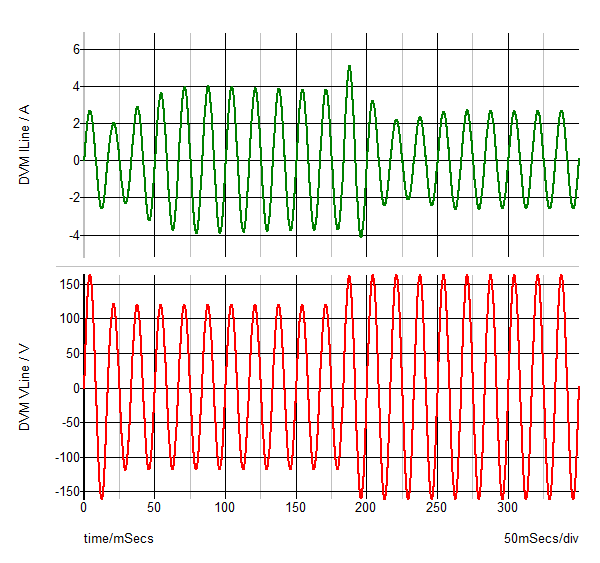

 Line
VLine
ILine
|
|
| SXGPH File | simplis_tran13_303.sxgph |
| Other SXGPH Files | |
| AC#tran | simplis_tran13_292.sxgph |
