» DVM Test Report: Steady-State|Steady-State|Vin Maximum|25%
| Test Details | |
| Schematic | 8.1_Sync Buck Efficiency.sxsch |
| Test | Steady-State|Steady-State|Vin Maximum|25% |
| Date / Time | 12/10/2015 6:01 PM |
| Report Directory | add_power_losses\Steady-State\Steady-State\VinMaximum\25% |
| Log File | report.txt |
| Screenshot | schematic.png |
| Status | PASS |
| Simulator | simplis |
| Deck | input.deck |
| Init | input.deck.init |
| Measured Scalar Values | |
| Efficiency | 96.0353% |
| Efficiency_Max | 96.0353% |
| IGate_Drive | AVG 12.7068m MIN -579.979p MAX 4.59148 RMS 199.225m PK2PK 4.59148 |
| ILine | AVG 1.67114 MIN 42.4646m MAX 4.80003 RMS 2.42975 PK2PK 4.75756 |
| ILOAD | AVG 3.52751 MIN 3.50353 MAX 3.55122 RMS 3.52754 PK2PK 47.6937m |
| ILOAD_Max | 3.52751 |
| Power(Gate_Drive) | 69.8476m |
| Power(Line) | 9.18534 |
| Power(LOAD) | 8.88825 |
| Power(Q1) | AVG 87.4259m |
| Power(Q2) | AVG 29.9478m |
| Power_Gate_Drive_Max | 69.8476m |
| Power_Line_Max | 9.18534 |
| Power_Load_Max | 8.88825 |
| Power_Q1_Max | 87.4259m |
| Power_Q2_Max | 29.9478m |
| Power_Sum_Of_All_Sources | 9.25519 |
| VGate_Drive | AVG 5.49999 MIN 5.49541 MAX 5.5 RMS 5.49999 PK2PK 4.59148m |
| VLine | AVG 5.49833 MIN 5.4952 MAX 5.49996 RMS 5.49833 PK2PK 4.75756m |
| VLOAD | AVG 2.51965 MIN 2.50252 MAX 2.53659 RMS 2.51967 PK2PK 34.067m |
| Measured Spec Values | |
| Max_VLOAD | PASS: Max. Output1 Voltage (2.53659) is less than or equal to Max. Output1 Voltage Spec (2.625) |
| Min_VLOAD | PASS: Min. Output1 Voltage (2.50252) is greater than or equal to Min. Output1 Voltage Spec (2.375) |
 LOAD
VLOAD
ILOAD
|
|
| SXGPH File | simplis_pop19_1113.sxgph |

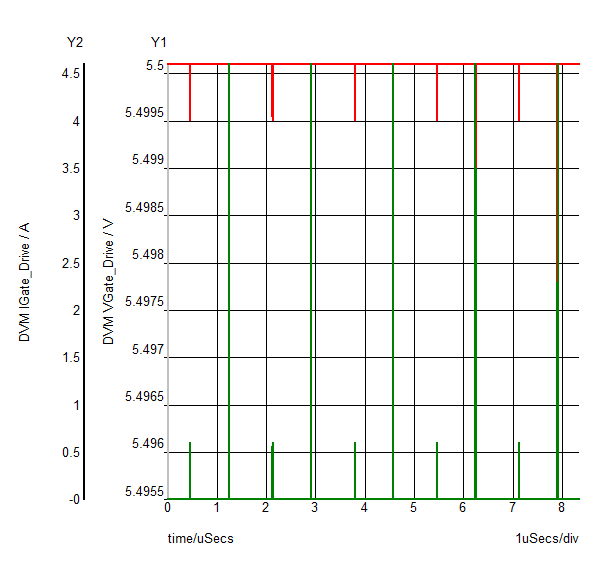

 Gate_Drive
VGate_Drive
IGate_Drive
|
|
| SXGPH File | simplis_pop19_1123.sxgph |

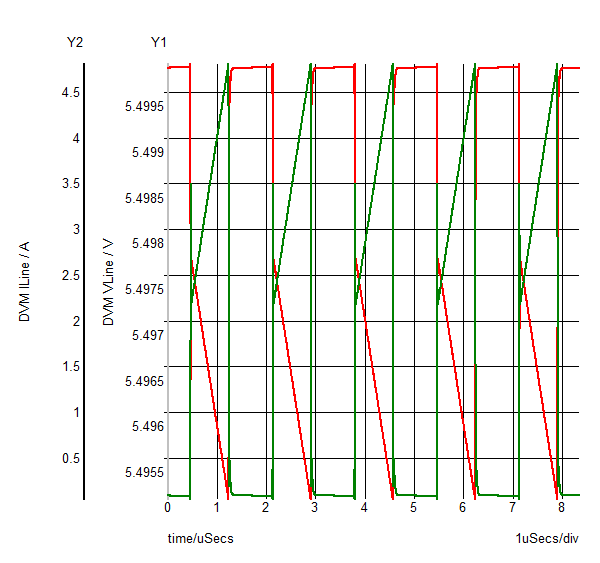

 Line
VLine
ILine
|
|
| SXGPH File | simplis_pop19_1118.sxgph |

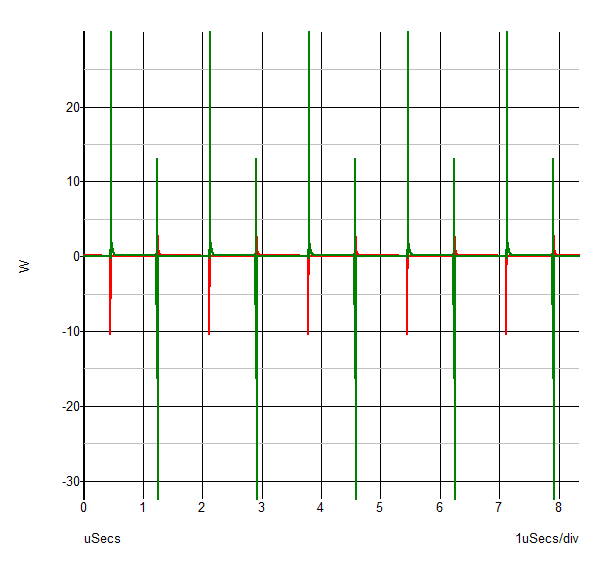

 power
Power(Q1)
Power(Q2)
|
|
| SXGPH File | simplis_pop19_1128.sxgph |
| Other SXGPH Files | |
| SWITCHING#pop | simplis_pop19_1081.sxgph |
| DRIVE#pop | simplis_pop19_1086.sxgph |
| INPUT#pop | simplis_pop19_1092.sxgph |
| IC#pop | simplis_pop19_1108.sxgph |
