» DVM Test Report: Steady-State|Steady-State|Vin Minimum|30%
| Test Details | |
| Schematic | 8.1_Sync Buck Efficiency.sxsch |
| Test | Steady-State|Steady-State|Vin Minimum|30% |
| Date / Time | 12/10/2015 6:04 PM |
| Report Directory | add_power_losses\Steady-State\Steady-State\VinMinimum\30% |
| Log File | report.txt |
| Screenshot | schematic.png |
| Status | PASS |
| Simulator | simplis |
| Deck | input.deck |
| Init | input.deck.init |
| Measured Scalar Values | |
| Efficiency | 96.8521% |
| Efficiency_Min | 96.8521% |
| IGate_Drive | AVG 10.7615m MIN -485.448p MAX 4.07863 RMS 158.363m PK2PK 4.07863 |
| ILine | AVG 2.43862 MIN 67.4714m MAX 5.25499 RMS 3.19103 PK2PK 5.18752 |
| ILOAD | AVG 4.23292 MIN 4.21008 MAX 4.25615 RMS 4.23295 PK2PK 46.076m |
| ILOAD_Min | 4.23292 |
| Power(Gate_Drive) | 48.4017m |
| Power(Line) | 10.9636 |
| Power(LOAD) | 10.6654 |
| Power(Q1) | AVG 106.096m |
| Power(Q2) | AVG 39.8478m |
| Power_Gate_Drive_Min | 48.4017m |
| Power_Line_Min | 10.9636 |
| Power_Load_Min | 10.6654 |
| Power_Q1_Min | 106.096m |
| Power_Q2_Min | 39.8478m |
| Power_Sum_Of_All_Sources | 11.012 |
| VGate_Drive | AVG 4.49999 MIN 4.49592 MAX 4.5 RMS 4.49999 PK2PK 4.07863m |
| VLine | AVG 4.49756 MIN 4.49475 MAX 4.49993 RMS 4.49756 PK2PK 5.18752m |
| VLOAD | AVG 2.5196 MIN 2.506 MAX 2.53342 RMS 2.51961 PK2PK 27.4262m |
| Measured Spec Values | |
| Max_VLOAD | PASS: Max. Output1 Voltage (2.53342) is less than or equal to Max. Output1 Voltage Spec (2.625) |
| Min_VLOAD | PASS: Min. Output1 Voltage (2.506) is greater than or equal to Min. Output1 Voltage Spec (2.375) |

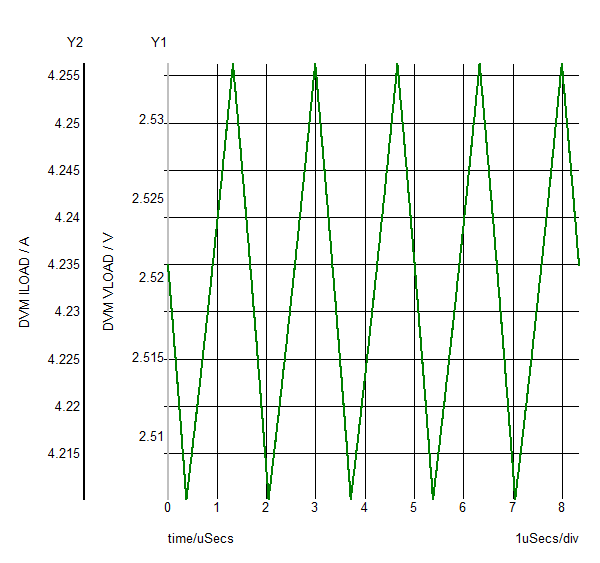

 LOAD
ILOAD
VLOAD
|
|
| SXGPH File | simplis_pop34_2013.sxgph |

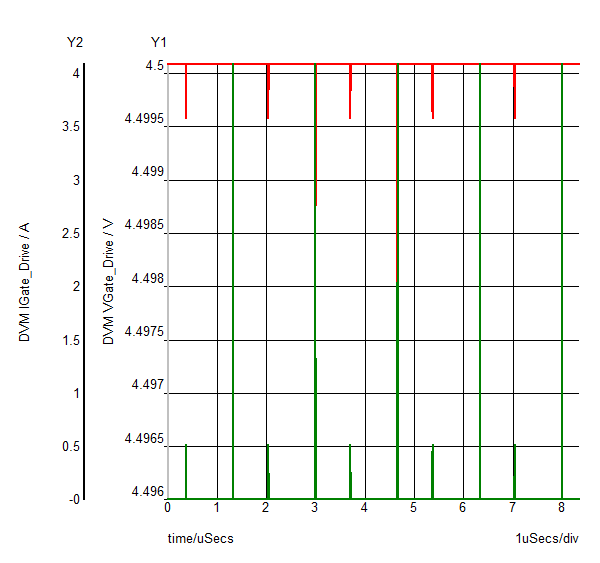

 Gate_Drive
VGate_Drive
IGate_Drive
|
|
| SXGPH File | simplis_pop34_2023.sxgph |

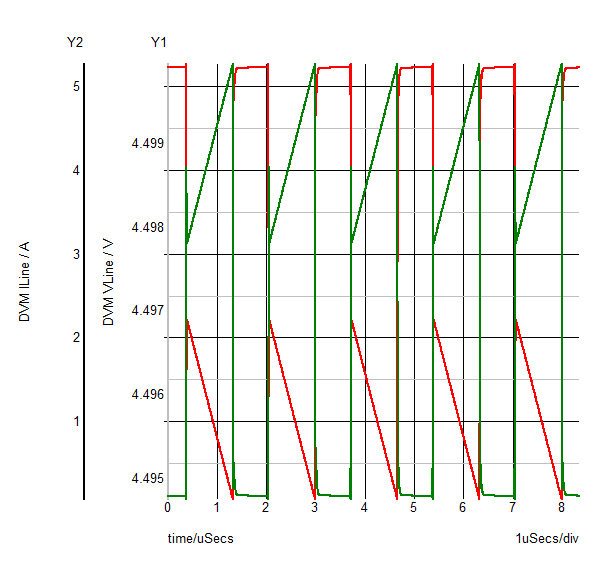

 Line
VLine
ILine
|
|
| SXGPH File | simplis_pop34_2018.sxgph |

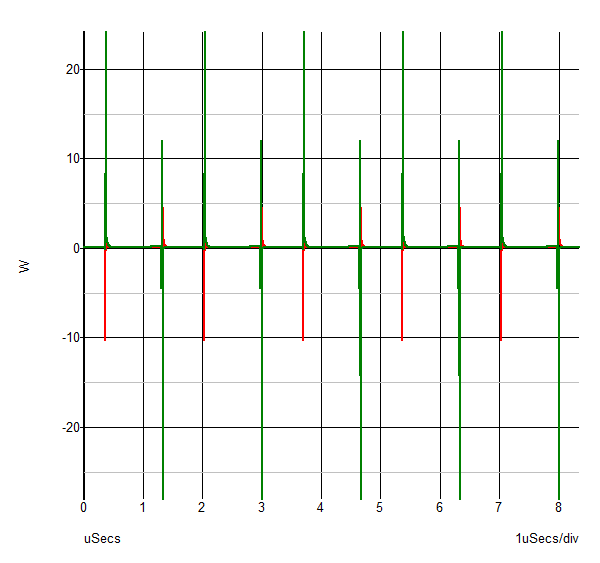

 power
Power(Q1)
Power(Q2)
|
|
| SXGPH File | simplis_pop34_2028.sxgph |
| Other SXGPH Files | |
| SWITCHING#pop | simplis_pop34_1981.sxgph |
| DRIVE#pop | simplis_pop34_1986.sxgph |
| INPUT#pop | simplis_pop34_1992.sxgph |
| IC#pop | simplis_pop34_2008.sxgph |
