» DVM Test Report: Steady-State|Steady-State|Vin Nominal|50%

Test Details
Schematic 8.1_Sync Buck Efficiency.sxsch
Test Steady-State|Steady-State|Vin Nominal|50%
Date / Time 12/10/2015 5:59 PM
Report Directory add_power_losses\Steady-State\Steady-State\VinNominal\50%
Log File report.txt
Screenshot schematic.png
Status PASS
Simulator simplis
Deck input.deck
Init input.deck.init
Measured Scalar Values
Efficiency 96.4765%
Efficiency_nom 96.4765%
IGate_Drive
AVG
12.1086m
MIN
-547.399p
MAX
4.79722
RMS
186.383m
PK2PK
4.79722
ILine
AVG
3.67799
MIN
114.165m
MAX
8.16092
RMS
5.01884
PK2PK
8.04676
ILOAD
AVG
7.05495
MIN
7.0122
MAX
7.09779
RMS
7.05499
PK2PK
85.5924m
ILOAD_Nom 7.05495
Power(Gate_Drive) 60.5081m
Power(Line) 18.3648
Power(LOAD) 17.7761
Power(Q1)
AVG
222.128m
Power(Q2)
AVG
112.686m
Power_Gate_Drive_Nom 60.5081m
Power_Line_Nom 18.3648
Power_Load_Nom 17.7761
Power_Q1_Nom 222.128m
Power_Q2_Nom 112.686m
Power_Sum_Of_All_Sources 18.4253
VGate_Drive
AVG
4.99999
MIN
4.9952
MAX
5
RMS
4.99999
PK2PK
4.79722m
VLine
AVG
4.99632
MIN
4.99184
MAX
4.99989
RMS
4.99632
PK2PK
8.04676m
VLOAD
AVG
2.51963
MIN
2.50436
MAX
2.53493
RMS
2.51964
PK2PK
30.5687m
Measured Spec Values
Max_VLOAD PASS: Max. Output1 Voltage (2.53493) is less than or equal to Max. Output1 Voltage Spec (2.625)
Min_VLOAD PASS: Min. Output1 Voltage (2.50436) is greater than or equal to Min. Output1 Voltage Spec (2.375)

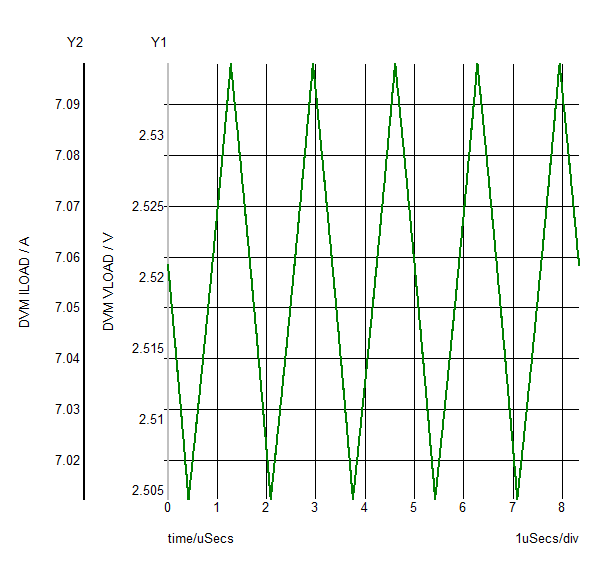

LOAD
VLOAD
ILOAD
SXGPH File simplis_pop9_513.sxgph

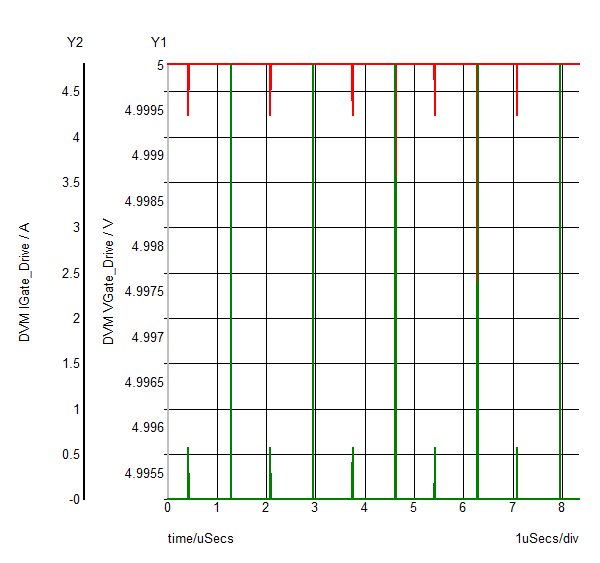

Gate_Drive
VGate_Drive
IGate_Drive
SXGPH File simplis_pop9_523.sxgph

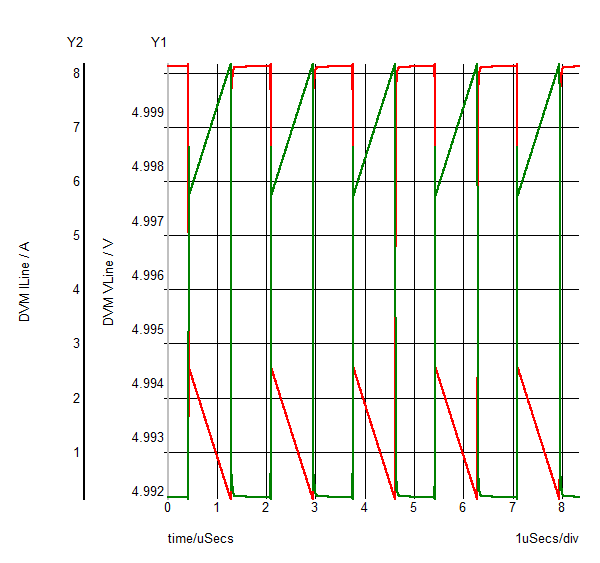

Line
VLine
ILine
SXGPH File simplis_pop9_518.sxgph

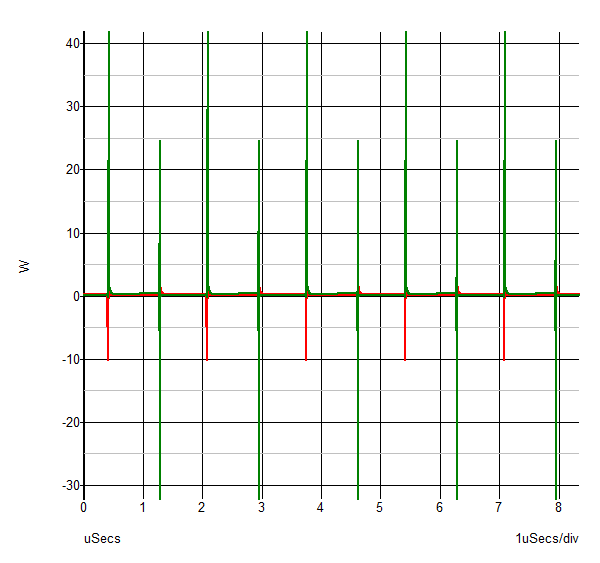

power
Power(Q1)
Power(Q2)
SXGPH File simplis_pop9_528.sxgph
Other SXGPH Files
IC#pop simplis_pop9_508.sxgph
SWITCHING#pop simplis_pop9_481.sxgph
DRIVE#pop simplis_pop9_486.sxgph
INPUT#pop simplis_pop9_492.sxgph
