» DVM Test Report: Steady-State|Steady-State|Vin Nominal|60%

Test Details
Schematic 8.1_Sync Buck Efficiency.sxsch
Test Steady-State|Steady-State|Vin Nominal|60%
Date / Time 12/10/2015 6:00 PM
Report Directory add_power_losses\Steady-State\Steady-State\VinNominal\60%
Log File report.txt
Screenshot schematic.png
Status PASS
Simulator simplis
Deck input.deck
Init input.deck.init
Measured Scalar Values
Efficiency 96.2697%
Efficiency_nom 96.2697%
IGate_Drive
AVG
12.1712m
MIN
-552.42p
MAX
4.98219
RMS
184.177m
PK2PK
4.98219
ILine
AVG
4.42665
MIN
142.724m
MAX
9.5485
RMS
6.02312
PK2PK
9.40578
ILOAD
AVG
8.46594
MIN
8.41503
MAX
8.51698
RMS
8.46599
PK2PK
101.958m
ILOAD_Nom 8.46594
Power(Gate_Drive) 60.8217m
Power(Line) 22.097
Power(LOAD) 21.3313
Power(Q1)
AVG
297.194m
Power(Q2)
AVG
158.847m
Power_Gate_Drive_Nom 60.8217m
Power_Line_Nom 22.097
Power_Load_Nom 21.3313
Power_Q1_Nom 297.194m
Power_Q2_Nom 158.847m
Power_Sum_Of_All_Sources 22.1578
VGate_Drive
AVG
4.99999
MIN
4.99502
MAX
5
RMS
4.99999
PK2PK
4.98219m
VLine
AVG
4.99557
MIN
4.99045
MAX
4.99986
RMS
4.99558
PK2PK
9.40578m
VLOAD
AVG
2.51962
MIN
2.50447
MAX
2.53482
RMS
2.51964
PK2PK
30.3446m
Measured Spec Values
Max_VLOAD PASS: Max. Output1 Voltage (2.53482) is less than or equal to Max. Output1 Voltage Spec (2.625)
Min_VLOAD PASS: Min. Output1 Voltage (2.50447) is greater than or equal to Min. Output1 Voltage Spec (2.375)
LOAD
VLOAD
ILOAD
SXGPH File simplis_pop10_573.sxgph

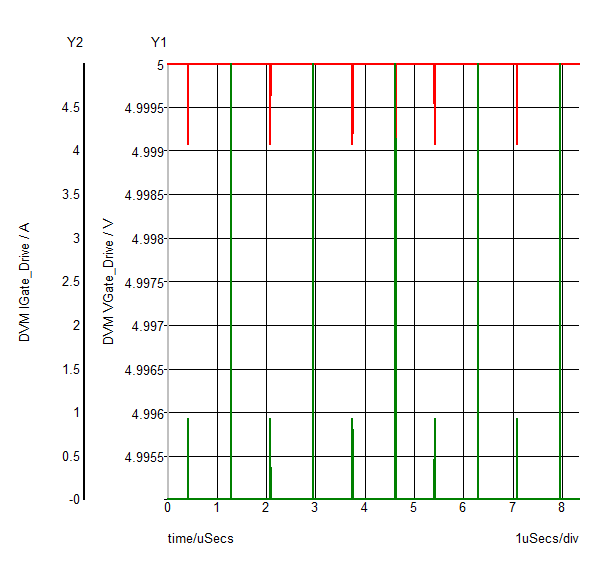

Gate_Drive
VGate_Drive
IGate_Drive
SXGPH File simplis_pop10_583.sxgph

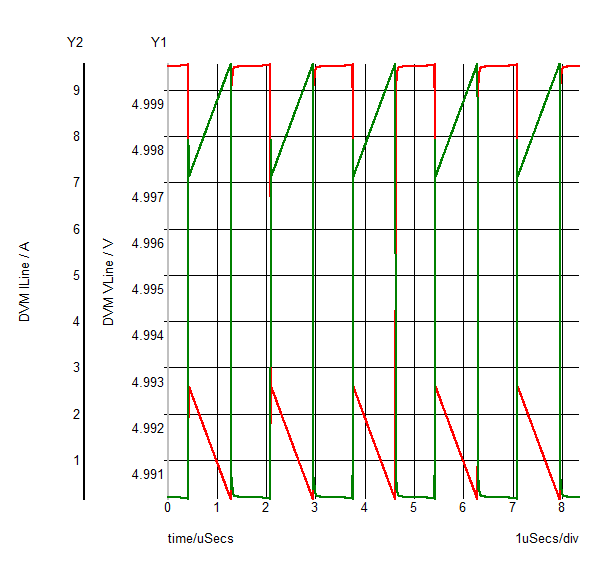

Line
VLine
ILine
SXGPH File simplis_pop10_578.sxgph

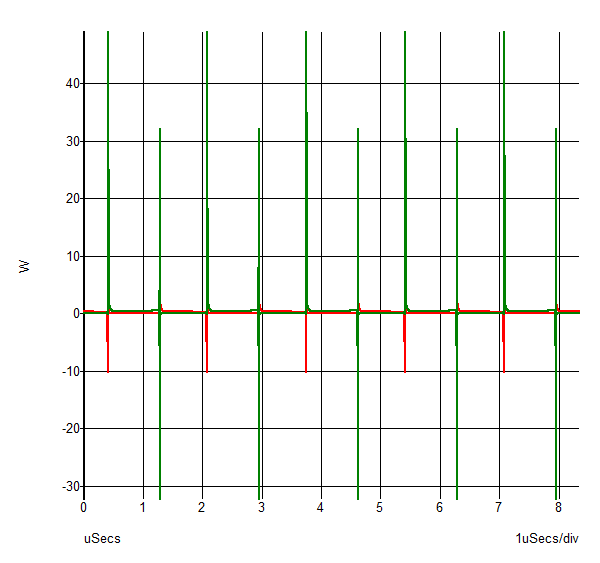

power
Power(Q1)
Power(Q2)
SXGPH File simplis_pop10_588.sxgph
Other SXGPH Files
SWITCHING#pop simplis_pop10_541.sxgph
DRIVE#pop simplis_pop10_546.sxgph
INPUT#pop simplis_pop10_552.sxgph
IC#pop simplis_pop10_568.sxgph
